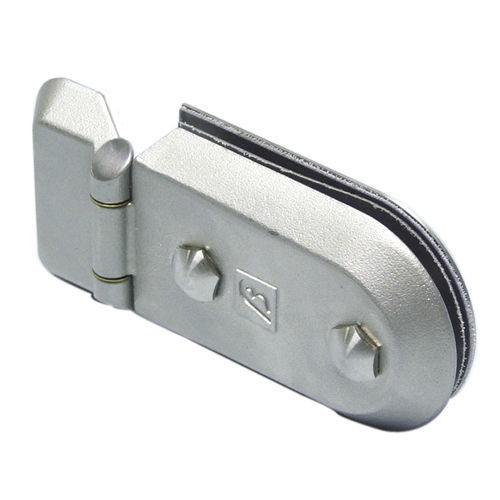

Stainless steel hinge 2532 Econcealedscrew-inweld-on

stainless steel hinge
stainless steel hinge
stainless steel hinge
Add to favorites
Compare this product
indicative price

Characteristics

Material
stainless steel
Type
concealed
Installation
screw-in, weld-on
Opening angle
180°
Other characteristics
locking
Applications
glass door
Length

56 mm (2.205 in)

Width

122.8 mm (4.835 in)

Thickness

10.3 mm (0.406 in)

Description

Use: for self-supporting doors (without external frame) made of glass with a thickness of 4-6 mm or Plexiglas panels with a thickness of 6-8 mm. Particularly suitable for sanitization requirements. Material AISI316 stainless steel hinge and plate, AISI303 stainless steel pin, AISI304 and AISI316 stainless steel screws, AISI303 stainless steel anti-friction washers, black polyethylene bushings and PVC seals (if provided). State of supply hinge complete with 2 M8x20 special-head screws in AISI304 stainless steel and 2 M6x16 socket head screws in AISI316 stainless steel. Only for the glass version: 2 bushings and 2 seals, 1 mm thick.
