Cylindrical plug

threadedpolyurethanestainless steel

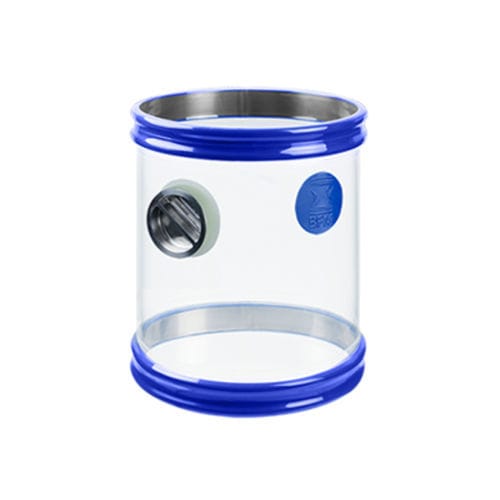

A screw-in port that gives easy access to drop-test balls or take product samples without interrupting product flow or losing product in the process. The Quick Access Port Connector features a polyurethane thread port hole and a stainless steel screw-in plug that is inserted in the side wall of a standard BFM® Seeflex 040E or Seeflex 060ES connector. The Quick Access Port is designed to give easy, clean access to a product flow for actions such as metal detector drop-ball testing, product sampling or adding small volumes of ingredients during manufacturing. Application Screw port provides fast and easy access to product flow without having to remove the connector. Because the connector doesn’t need to be removed, there is no product spillage or wastage. Does not affect the physical performance of the connector. Key Features Quick and easy access to product flow with no connector removal required Physical properties Can be applied to Seeflex 040E & Seeflex 060ES Colour Natural (Yellow) Weight 168g Breathable No Dust tight? Yes Maximum Number of Rings (on a single connector) 10 Operating Conditions Vibration Yes Oscillation No Compression No Certification and Compliance FDA and USDA FDA 21 CFR 177.1680 & 177.2600 3A Certified Manufactured from 3A 20-27 certified Seeflex Material and the BFM® cuff and spigot system is a 3A certified 63-04 sanitary fitting. EU Approved Yes Atex Certified Yes, provided the stainless plug is earthed. Restrictions apply. Options Available with SS Rings? (min. length for all is 150mm) Yes Available with Plastic Rings? (min. length for all is 150mm) Yes Available as Tool Release? Yes Available as Tapered? Yes
