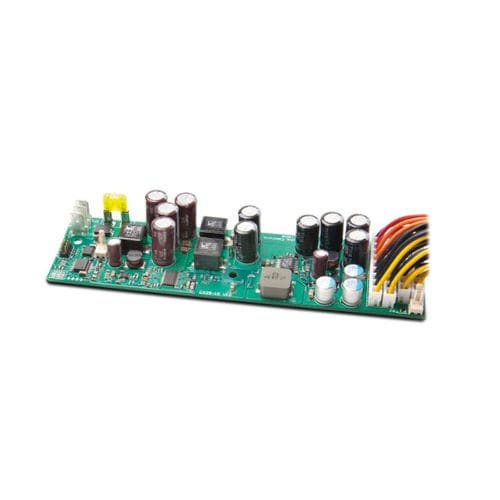

Open frame power supply DC160W

DC/DCmultiple-outputfor industrial applications

DC-ATX power supply with ultra wide input range 6…36VDC 160W / 6-36VDC / +5Vsb/+3,3V/+5V/+/-12V The robust ATX DC/DC converter is characterised by its high efficiency and wide input voltage range. To achieve a good thermal management, the power modules are installed on the bottom side. In addition to industrial and medical applications the ignition function enables applications in motor vehicles, too. High quality components provide maximum reliability and a long life time. • Ultra wide input range 6...36VDC • Extended temperature range -20...+70°C • Efficiency up to 93 % • With motor vehicle ignition function • No minimum load required • Optional EMC filter for EN 55022 class B available • Including thermal pad for chassis mounting • Excellent thermal performance due to power components on bottom side • Maximum reliability and long life time due to high quality components
