ATX power supply BEP-520C
DC/DCmultiple-outputwide input range

ATX power supply
ATX power supply
Add to favorites
Compare this product


Characteristics

Type
DC/DC
Output
multiple-output
Other characteristics
wide input range, robust, ATX, for industrial applications, open frame, built-in
Power

200 W

Input voltage

Max.: 32 V

Min.: 16 V

Output voltage

Max.: 12 V

Min.: -12 V

Current

Max.: 17 A

Min.: 0.5 A

Description

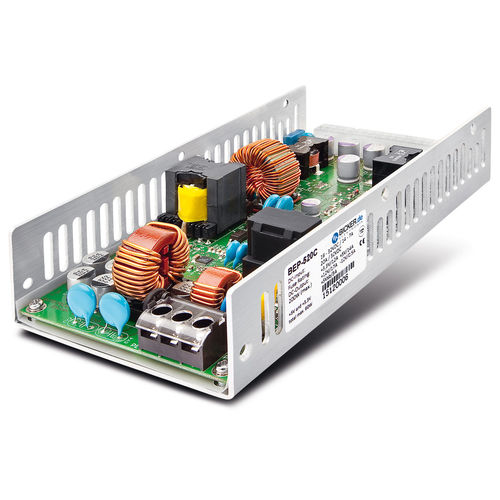

Bicker BEP-520C High reliable 200W DC ATX power supply for demanding applications Fanless Industrial DC PC power supply 200W / 16-32VDC / ATX Thanks to an innovative circuit design, the 200W IPC power supply is characterized by an excellent voltage regulation and a high efficiency >90% typ. Polymer capacitors provide consitent performance even in the minus temperature range. As far as output is concernded, no minimum load is required. The +5Vsb output can supply loads of up to 3A. High quality components ensure maximum reliability and long lifetime. • Fanless Industrial DC PC power supply 200W / 16-32VDC / ATX • 200W continuous fanless power • Only high-quality polymer capacitors • Design-Lifetime 12+ Years • High efficiency >90% typ • Ideal heat transfer due to improved thermal connection with chassis • Galvanic isolation input/output 3000VAC • No minimum load required • Cable management system • Low standby consumption 0.3 W • ErP lot 6 2013 ready • 3 years warranty • Including DC cable harness • Made in Germany

Catalogs

BEP-520C
BEP-520C
4 Pages
