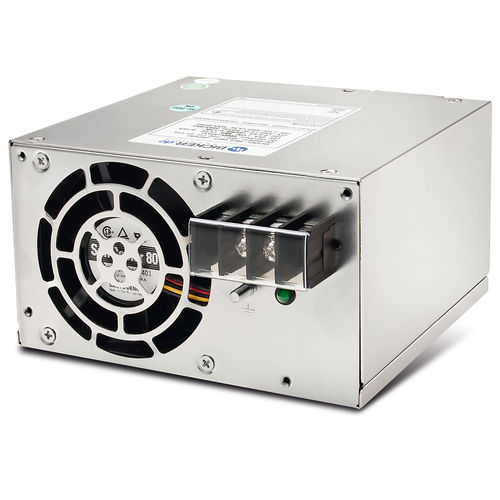

DC/DC power supply BES-540T
multiple-outputfor IPC

DC/DC power supply
DC/DC power supply
Add to favorites
Compare this product


Characteristics

Type
DC/DC
Output
multiple-output
Other characteristics
for IPC
Power

400 W

Input voltage

Max.: -36 V

Min.: -72 V

-48 V

Output voltage

Max.: 12 V

Min.: -12 V

Description

Bicker BES-540T Powerful industrial PC Power Supply for -48VDC Industrial DC PC power supply 400W / -48VDC / TÜV / UL The DC PC power supply BES-540T has been designed for use in industry, telecom and transport. Thanks to its broad input voltage range of –36 to –72VDC it can be supplied via –48VDC as well as –60VDC power networks. With a high output power load of +12VDC it is capable of safely supplying the necessary power for high-performance graphic applications. The fan on roller bearing is temperature controlled and provides a tachometer signal for monitoring. • -36...-72VDC input voltage • Designed for applications in industry, telecommunication and transportation • TÜV and UL approved • EN/UL 62368-1 certified • High efficiency >80% • Strong 12V rail (32 A) for high performance grafic applications • No minimum load required • Ball beared and temperature controlled fan with tachometer signal for monitoring

Catalogs

BES-540T
BES-540T
2 Pages
