Product Overview

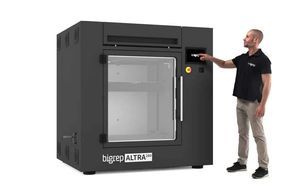

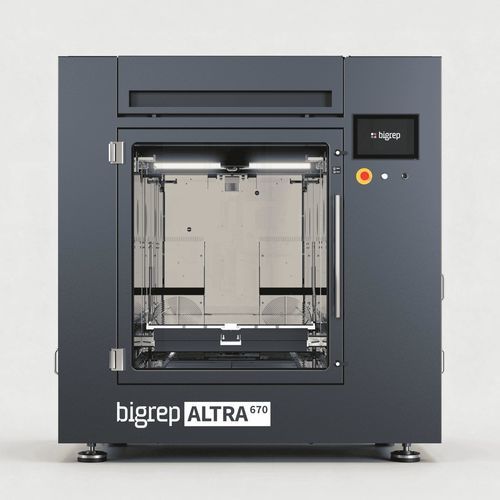

The BigRep ALTRA 670 is a large-format, high-temperature industrial 3D printer designed for continuous production of complex, production-grade parts up to 1200 mm in length. It provides a thermally stable heated build chamber, automated calibration and monitoring, integrated material storage and remote visibility for reliable, repeatable manufacturing.

Key Features

• Large heated build chamber: 670 L chamber heated up to 140°C for thermal stability on large parts.
• Massive build volume: supports parts up to 1200 mm in length; full build envelope 700 × 1200 × 800 mm.
• Dual DSX extruders: Direct Synchronized Extruders with integrated cooling and sensors; Relay Mode enables automatic switchover when a filament spool is depleted.
• High-temperature capability: nozzle temperatures up to 450°C to process engineering and high-performance polymers.
• SWITCHPLATE heated print bed: flexible magnetic plate with embedded wiring for homogeneous temperature and strong first-layer adhesion; removable for part extraction.
• Keep-dry material storage: sealed chamber for two spools to protect hygroscopic polymers.
• Automated quick start and calibration: topology measurement, adaptive mesh bed leveling and automated calibration reduce setup time and errors.
• Integrated sensors and remote monitoring: onboard sensors plus HD wide-angle camera for process visibility.
• Air cleaning unit: HEPA and activated carbon filters for improved workshop air quality.
• Open Material System: compatible with BigRep and third-party filaments, including many engineering and high-temp materials.

Applications

• Aerospace-grade parts: production-capable components designed to withstand heat, vibration and mechanical stress.
• Functional prototypes and product development: evaluate designs at operating temperatures with production-grade polymers.
• Durable tooling, jigs and fixtures: in-house manufacture of wear- and deformation-resistant tooling for production use.

Materials (summary)
Recommended and supported materials include ABS, ASA, PC and a wide range of engineering/high-performance polymers. Examples: ABS, ABS-ESD, ABS-FR, ASA, HT-PETG, PA6, PA6-CF, PA12, PA12-CF, PA12-GF, PC, PC-ABS, PC-FR, PC-CF, PCTG, PEKK, PEKK-CF, PETG, PLA, PP, PP-GF, PPS, PPSU, TPU, TPC.

Extrusion & Print Technology (summary)
Dual water-cooled Direct Synchronized Extruders (DSX). Nozzle temperature up to 450°C. Nozzle diameters: 0.6 mm or 1.0 mm (diamond type). Minimum layer height: 0.15 mm. Maximum throughput (single nozzle): ~250 g/h. Filament diameter: 1.75 mm.

Automation & Reliability

• Out-of-filament detection and automatic Relay Mode for continuous production.
• Pause and resume print capability.
• Adaptive mesh bed leveling and automated calibration via topology measurement and compensation.
• Continuous monitoring with integrated sensors and remote HD camera.

Additional Functional Highlights

• Welded frame with ball screws and servo motors for positional accuracy over long prints.
• Even temperature distribution across the build volume assisted by airflow control technology.
• Example power requirement: 3P+PE, 400 V/480 V, 32A, 50/60 Hz (site-specific electrical planning required).
• Certifications: CE, UL Ready.

Technical specifications

• Model name: ALTRA 670
• Build volume: X 700 × Y 1200 × Z 800 mm (X 27.6 × Y 47.2 × Z 31.5 in)
• Build chamber temperature: up to 140°C (284°F)
• Print bed temperature: up to 140°C (284°F)
• Print bed surface: SWITCHPLATE (magnetic, flexible, removable)
• Outer dimensions (approx.): X 1900 × Y 2450 × Z 1950 mm (X 74.8 × Y 96.5 × Z 76.8 in)
• Weight (approx.): 1870 kg (4123 lbs)
• Extruder: Direct Synchronized Extruder (DSX)
• Extruder configurations: Dual water-cooled DSX
• Nozzle temperature: up to 450°C (842°F)
• Nozzle diameters: 0.6 mm or 1.0 mm
• Nozzle type: Diamond
• Minimum layer height: 0.15 mm
• Maximum throughput: ~250 g/h
• Filament diameter: 1.75 mm
• Drive technology: Servo motors
• Maximum movement speed: XY 400 mm/s
• Position accuracy: < 0.05 mm
• Material storage: Keep-Dry Chamber (sealed dry-storage for spools)
• Air cleaning: HEPA and activated carbon filters
• Automation features: Out-of-filament detection, Pause/Resume, Relay Mode backup, Adaptive Mesh Bed Leveling, Automated Calibration
• Certifications: CE, UL Ready
