Filament dryer DRYCON

Product overview

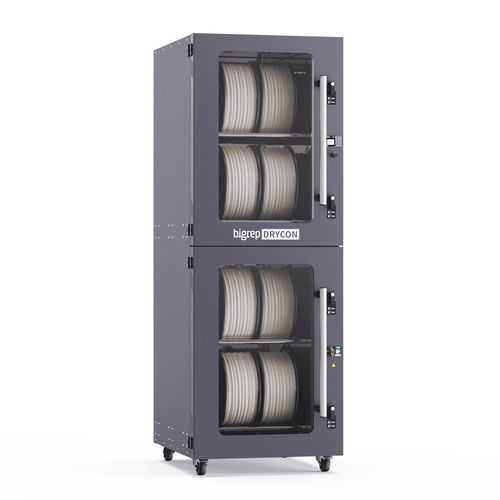

The BigRep DRYCON is a dual-chamber industrial filament dry cabinet combining three functions: drying, high-capacity storage, and annealing to maximize part quality, strength and thermal resistance. Engineered as a printer companion with direct filament outlets to feed 3D printers and independent chamber control for simultaneous workflows.

Key functions

• Dry: Periodic active air exchange cycles replace humid air with fresh air to eliminate moisture efficiently and provide consistent drying while saving energy.
• Store: High-capacity, climate-controlled filament storage that locks out moisture and heat so material is ready for print.
• Anneal: Bottom chamber doubles as an annealing oven (heats up to 180°C) to relieve internal stresses, improve inter-layer bonding, dimensional stability, heat resistance and mechanical properties of printed parts.

Highlights and performance details

• Dual independent chambers (each chamber 780 x 455 x 410 mm) with customizable temperature settings; upper chamber dries/stores up to 120°C, lower chamber can heat to 180°C for annealing.
• Active air exchange system (periodic air cycles) to remove moisture and ensure uniform drying conditions.
• Integrated Siemens LOGO! control system providing an intuitive user interface.
• Direct dryer-to-printer filament feed system with four filament outlets to streamline printing workflow and eliminate manual filament transfers.

Storage capacities (as presented on the page)
The site provides multiple capacity descriptions; summarized here to preserve all reported values:

Per chamber (table): 12 spools of 0.75 kg OR 8 spools of 4.5 kg OR 4 spools of 8 kg
Together (two chambers combined, page text): up to 24 spools of 0.75 kg OR 16 spools of 4.5 kg OR 8 spools of 8 kg (chambers can be configured independently)
Hotspot mention (combined weight basis): Up to 36 kg filament storage (example configurations shown like 16 x 1 kg, 8 x 4.5 kg, 4 x 8 kg per combined chambers in specific messaging)

Materials & recommended uses
The DRYCON is targeted at technical, flexible and high-performance materials that benefit from drying and annealing. Materials shown and referenced on the page include:

• PA12 CF (fiber-reinforced)
• PA6/66
• TPU 98A
• BVOH (water-soluble supports)
• ULTEM® 9085
• PEKK-A

Recommended 3D printers

• BigRep ALTRA 280
• BigRep IPSO 105

Technical table
Chamber Dimensions (H x W x D): 780 x 455 x 410 mm (each chamber)
Spool Storage Capacity per Chamber: 12 spools of 0.75 kg
8 spools of 4.5 kg
or 4 spools of 8 kg
Maximum Temperature: 120°C (Upper chamber)
180°C (Lower chamber)
Air Exchange Rate: 200 m³/h
Power: 1P+N+PE, 208-240 VAC, 12 A, 50/60 Hz
Power Consumption: Maximum 2.7 kW
Dimensions (H x W x D): 1921 x 691 x 890 mm (depth without handles)
Weight: 390 kg (860 lbs)

Why dry & anneal filaments and parts

• Drying eliminates moisture-related print defects (bubbling, stringing, inconsistent flow) and improves surface finish and dimensional accuracy.
• Annealing rearranges internal structure, releases stresses, improves inter-layer bonding and tensile strength, and increases thermal stability and long-term durability.

Technical specifications

• Model: DRYCON (dual-chamber filament dry cabinet with annealing capability)
• Chamber internal size: 780 x 455 x 410 mm (each chamber)
• Per-chamber spool storage examples: 12 x 0.75 kg, 8 x 4.5 kg or 4 x 8 kg
• Combined stored spool examples: up to 24 x 0.75 kg, 16 x 4.5 kg, or 8 x 8 kg (two chambers)
• Maximum temperatures: upper chamber up to 120°C; lower chamber (annealing) up to 180°C
• Air exchange rate: 200 m³/h (active air exchange cycles)
• Power requirements: 1P+N+PE, 208–240 VAC, 12 A, 50/60 Hz
• Max power consumption: 2.7 kW
• External dimensions: 1921 x 691 x 890 mm (depth without handles)
• Weight: 390 kg (860 lbs)
• Controls: Siemens LOGO! control system (intuitive UI)
• Workflow integration: four filament outlets for direct feed to 3D printers
