PLA 3D printer VIIO 250

plasticPApolyamide

Product Overview

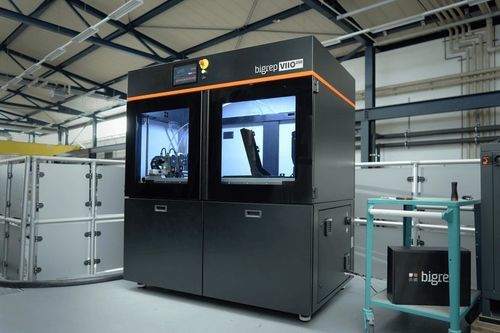

The BigRep VIIO 250 is a fully automated large-format industrial 3D printer engineered for continuous production of large, functional parts with engineering-grade materials. It combines a heated build chamber, removable SWITCHPLATE bed, dual SMX extruders and automation features for unattended long-run manufacturing.

Key Benefits

• Continuous automated production with autocalibration, adaptive mesh bed leveling, out-of-filament detection and auto-sequential printing.
• Stable thermal environment and heated build chamber for consistent prints with high-temperature engineering materials.
• Infinity Box and Relay Mode enable uninterrupted filament handling and automatic backup between spools for long runs.

Features

• Heated Build Chamber: 250 L chamber heated up to 50 °C for dimensionally stable parts.
• Dual SMX Extruders: Two synchronized Smart Manufacturing Extruders with sensors, extrusion up to 350 °C and Relay Mode for automatic spool switching.
• Continuous Production Tools: Infinity Box, Relay Mode and auto-sequential printing for 24/7 operation.
• Print Bed: SWITCHPLATE removable magnetic surface heated to 120 °C with Prime and Select options for reliable first layers and easy part removal.
• Open Material System: Supports BigRep filaments and compatible third-party materials including high-temperature polymers.
• Remote Monitoring: Integrated HD wide-angle camera for real-time visibility and remote supervision.

Materials
BigRep Materials:
ASA, BVOH, HI-TEMP, HI-TEMP CF, PA6/66, PA12, PLX, PRO HT, rPETG, rPLA, TPU 98A
Compatible Materials:
Open material system — compatible with a wide range of filaments including high-temperature engineering polymers.

Key Features (summary)
Build Volume: 1000 x 500 x 500 mm (X x Y x Z)
Build Chamber Temperature: up to 50 °C
Print Bed Temperature: up to 120 °C
Print Bed Surface: SWITCHPLATE Prime, SWITCHPLATE Select
Machine Dimensions: 1634 x 1069 x 1829 mm (X x Y x Z)
Weight: approx. 560 kg (machine); Infinity Boxes additional approx. 62 kg

Extrusion
Extruders: Dual Smart Manufacturing Extruder (SMX)
Nozzle Temperature: up to 350 °C
Nozzle Diameters: 0.4, 0.6, 1.0 mm
Layer Heights: 0.2, 0.3, 0.6 mm (custom heights supported in BLADE)
Maximum Throughput: 200 g/h
Filament Diameter: 2.85 mm
Nozzle Type: Diamond

Automation
Out-of-Filament Detection: Yes
Pause and Resume Print: Yes
Relay Mode (Backup Function): Yes (automatic switch between extruders/spools)
Adaptive Mesh Bed Leveling: Yes
Automated Calibration: Yes (topology measurement and compensation)
Auto-Sequential Printing: Yes (automatic queue processing and job placement)

Storage & Filament Handling
Infinity Box: Optional automated material storage handling up to 32 kg (4 x 8 kg spools in two chambers), Keep-Dry chambers and automatic loading between spools for continuous printing.

Applications

• Production-ready large end-use parts made from engineering materials (heat/load/daily-use resistant).
• Functional prototypes validated at operating temperatures using production polymers.
• Durable tooling, jigs and fixtures for manufacturing environments.
• Industry use cases: automotive, transportation, marine, defense, research and more.

Technical specifications

• Model: VIIO 250
• Build Volume: 1000 x 500 x 500 mm (X x Y x Z)
• Build Chamber Temperature: up to 50 °C
• Print Bed Temperature: up to 120 °C
• Print Bed Surface: SWITCHPLATE Prime / SWITCHPLATE Select (removable magnetic plate)
• Extruders: Dual SMX (Smart Manufacturing Extruder)
• Nozzle Temperature: up to 350 °C
• Nozzle Diameters: 0.4 mm, 0.6 mm, 1.0 mm
• Layer Heights: 0.2 / 0.3 / 0.6 mm (custom supported in BLADE)
• Maximum Throughput: 200 g/h
• Filament Diameter: 2.85 mm
• Filament Handling: Infinity Box (optional) stores up to 32 kg, automatic load/reload
• Machine Dimensions: 1634 x 1069 x 1829 mm (X x Y x Z)
• Weight: approx. 560 kg (machine); Infinity Boxes approx. 62 kg
• Power: 1P+N+PE, 208V-240V, 16 A, 50/60 Hz
• Certifications: CE, EC Machinery Directive 2006/42/EC Compliant, UL ready
