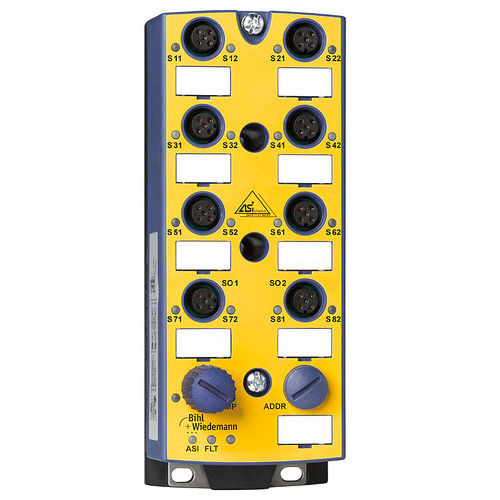

Digital I/O module BW3489

ASisafetyvoltage

ASi Safety I/O Module in IP67, with 8 x M12 sockets, 6-8 x 2 channels safe inputs (SIL 3, cat. 4) for floating contacts, OSSDs or complementary switch, up to 16 standard inputs, up to 2 release circuits (up to 2 x electronic safe outputs), up to 16 standard outputs, input voltage/sensor supply out of ASi, output voltage/actuator supply out of ASi, periphery connection via 8 x M12 sockets, 5 poles, without limitation of connector cable length (loop resistance 150 Ohm), ASi/AUX connection via profile cable and piercing technology, ASi addresses depending on configuration Thesubstructure moduleis not included in the scope of delivery. Technical data Inputs Safety, SIL 3, Cat. 4 - 6-8 x 2 channels; depending on configuration Safety signal inputs - OSSDs, complementary switch, floating contacts Outputs Safety, SIL 3, cat. 4 - up to 2 release circuits, up to 2 x electronic safe outputs; depending on configuration Safety signal outputs - electronic safe outputs Input voltage (sensor supply) - out of ASi Output voltage (actuator supply) - out of ASi ASi address - depending on configuration
