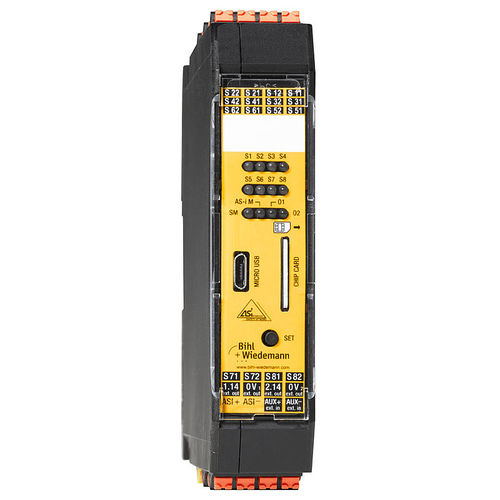

SIL safety monitor BWU2567

integrated

Safety Basic Monitor with extended features, 1 ASi monitor, 8 digital inputs or 4 x 2 channels safe inputs (SIL 3, cat. 4), inputs 3+4, compatible as replacement with ASi consortium monitor, expandable to max. 31 x 2 channels safe inputs, 2 release circuits (2 x electronic safe outputs), expandable to max. 16 safe outputs, diagnostic and configuration via micro USB interface, IP20 Technical data Fieldbus interface - ASi monitors Model - Safety Basic Monitor with extended features Inputs Safety, SIL 3, Cat. 4 - 4 x 2 channels, inputs 3+4, compatible as replacement with consortial monitor Outputs Safety, SIL 3, cat. 4 - 2 release circuits, 2 x electronic safe outputs Number of ASi networks, number of ASi Master - 1 ASi network, no ASi Master, ASi Monitor Integrated decoupling, ASi current measurement in the gateway - no, max. 8 A/ASi network
