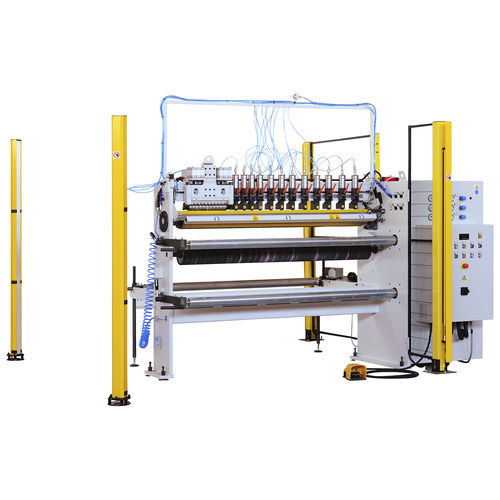

Paper slitter TRS

for fabricsjumbo roll

The roll slitter machine type TRS is designed to cut flexible materials with a maximum cutting width of 1650 mm. A 2050 mm width version is also available. The TRS machine is suitable for converters with discrete but not very automatic production. Technical Data - Variable speed, up to 50 m/min - Expanding shafts on both unwinder and rewinder sides - The unwinder shaft can be shifted sideways, by hand wheel - Unwinder maximum diameter 700 mm - Rewinders maximum diameters 400 mm (480 mm on single shaft) Knifeholders - Mechanical knifeholders with regulation of positioning and clamping (HL-25/100) - Penumatic knifeholders with mechanical regulation of positioning and clamping, pneumatic cutting (KB-50) - Fixed knife set (FKS) for cutting width less than 25 mm on 310 mm working width Options - Meter counter with automatic stop - Manual cross cutter Size and Power - Overall machine dimensions (TRS-1650 model): - 2.4 x 3.5 x 2.3 m (with perimetric protections) - 1.5 x 3.0 x 1.7 m (without perimetric protections) - Approx. weight: 1,800 kg - Installed power: 7 kW - Air consumption: 10 l/cycle
