Roll slitter MRMfor abrasive paperfor abrasive clothcoated abrasive
Add to favorites
Compare this product
Characteristics
- Applications
- for abrasive paper, for abrasive cloth, coated abrasive
- Finished product
- roll
Description

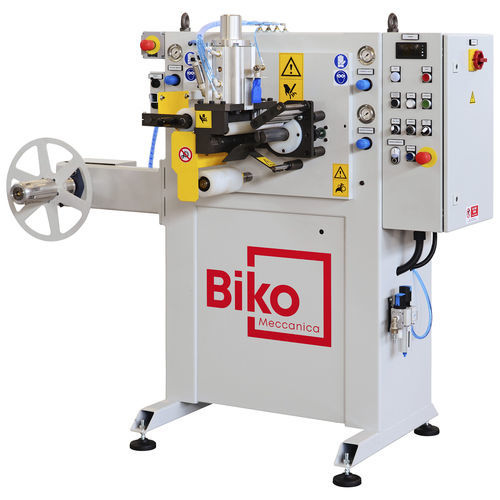

The miniroll machine type MRM is designed to cut and rewind minirolls of abrasive paper and cloth out of a abrasive roll. MRM is a machine for a medium-high production, and can cut small quantities as well as a series of minirolls.
Technical Data
- Unwinder for 150 mm wide rolls
- Maximum diameter of the roll 600 mm
- Maximum length of the miniroll 10 m
- Minimum diameter of rewinding shaft 40 mm
- Shear cut with round knife on straight counterknife
- Automatic feeding, rewinding, cut and ejection of the miniroll
- Productivity: up to 9 minirolls/min
Options
- Rewinding shaft of different diameter
Size and Power
- Overall machine dimensions: 1.4 x 0.7 x 1.4 m
- Approx. weight: 400 kg
- Installed power: 1 kW
- Air consumption: 12 Nl/cycle
