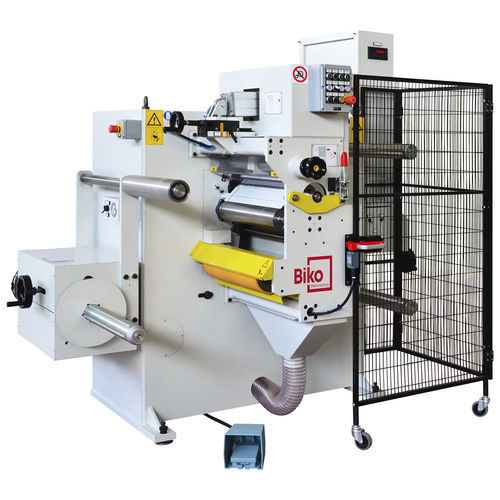

Roll slitter AT1-SHEAR-750for fabricsfor papercoated abrasive
Add to favorites
Compare this product
Characteristics
- Applications
- for paper, for fabrics, coated abrasive
- Finished product
- roll
Description
The roll slitter machine type AT1-SHEAR is designed to cut and rewind rolls of flexible materials with a special shearcutting system. AT1-SHEAR is a machine particularly useful for the clean cut even at very narrow widths of difficult materials like abrasives with film support.
Technical Data
- Shear cutting system—high precision
- Variable speed, up to 50 m/min
- Expanding shafts on both unwinder and rewinder sides
- Maximum web width 450 mm or 750 mm
- Unwinder maximum diameter 850 mm
- Pneumatic unwinding brake, adjustable
Knifeholders
- Shear knifeholders
Size and Power
- Overall machine dimensions (AT1-SHEAR-750 model, with perimetric protections): 5.4 x 2.9 x 2.3 m
- Approx. weight: 2,400 kg
- Installed power: 7 kW
- Air consumption: 2500 Nl/h
