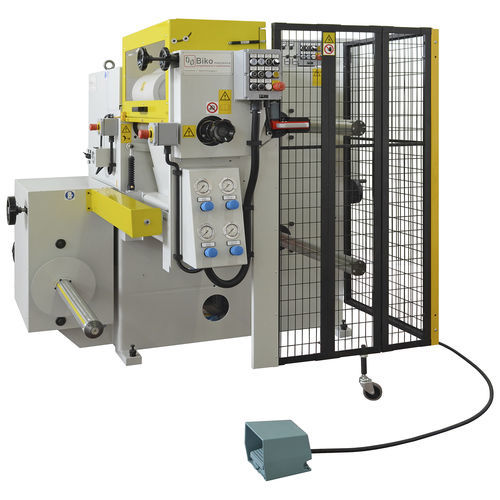

Roll slitter SNM-TR-610

for abrasive paperfor abrasive clothcoated abrasive

The roll slitter machine type SNM-TR is designed to cut and rewind narrow rolls of abrasive paper and cloth. Unwinding can occur with grain both outside and inside, while rewinding can occurs only with grain outside. SNM-TR is perfect for converters having a considerable working load and for materials whose processing is rather difficult. Technical Data - Variable speed, up to 50 m/min - Expanding shafts on both unwinder and rewinder sides - Maximum web width 450 mm or 610 mm - Unwinder maximum diameter 600 mm - The unwind shaft with the abrasive roll can be moved sideways, by hand wheel - Pneumatic unwinding brake, adjustable Knifeholders - Mechanical knifeholders with regulation of positioning and clamping (HL-25/100) - Fixed knife set (FKS) for cutting width less than 25 mm on 310 mm working width Options - Indicating meter counter with automatic stop - Automatic alignment on unwinder Size and Power - Overall machine dimensions (SNM-TR-610 model, with perimetric protections): 2.4 x 2.0 x - 2.2 m - Approx. weight: 1,700 kg - Installed power: 6 kW - Air consumption: 900 Nl/h
