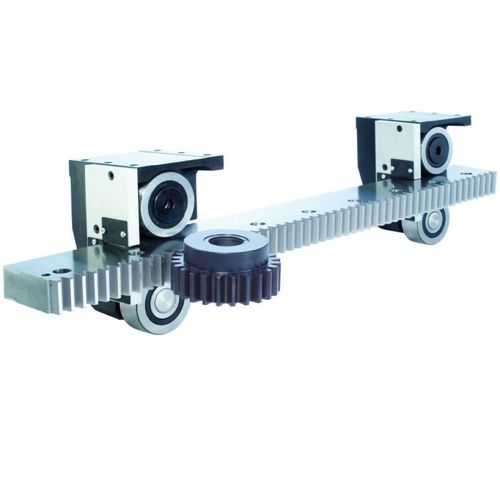

Slide guide unit MHD

high-precisionfor heavy-duty applicationshigh-rigidity

MHD Linear Slide System is ideal for many heavy mechanical handling industries, including robotic transfer systems in the welding industry and assembly processes in the automotive industry. The MHD comes as a kit with tracks and a set of four bearing blocks, comprised of left and right block assemblies. Overview MHD Linear Slide System is ideal for many heavy mechanical handling industries, including robotic transfer systems in the welding industry and assembly processes in the automotive industry. The MHD comes as a kit with tracks and a set of four bearing blocks, comprised of left and right block assemblies. Bearing Blocks Bearing blocks, each with three large integral crown rollers, are sealed for the life of the product for reduced friction and maintenance. This increases life and enables continuous operation. The top v groove bearing, which supports the heaviest load, is a tapered roller bearing for high capacity and rigidity. To remove play, rollers on the side and lower region are adjustable. The double-row tapered bearings are aligned in the direction of motion, allowing it to resist end loading and premature failure caused by axial loading. Flat Tracks The MHD includes a pair of 100 by 40mm high precision flat tracks that are hardened and fully ground on all surfaces. Tracks of single lengths up to 1.4m can be joined for longer length applications. Pinions Available in two sizes to suit MHD flat tracks with both straight cut and helical racks, pinions have a metric module tooth form with a 20 degree pressure angle. Pinions are made from high quality case hardened steel, and the teeth are precision ground to ISO 1328 grade 6.
