Electric linear unit HDLS series

belt-drivenheavy-duty

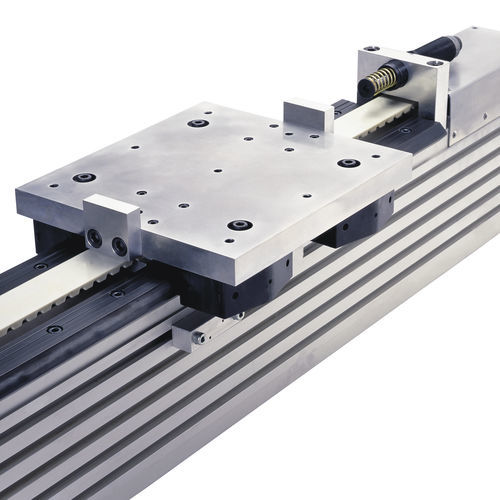

HDLS utilizes heavy duty slides and actuates them by AT series belt. Narrow and wide unit versions are available. The narrow unit is taller than the wide unit making it stiffer. The wide unit is better suited for applications with high moment loads. Both the narrow unit and the wide unit feature left, right, and dual output shafts. Gear boxes may be supplied directly coupled to units. Extended output shafts on gear boxes are also possible to drive two systems in parallel. Optional shock absorbers and rubber buffers are available for HDLS systems. Narrow Unit The narrow unit is mounted to a slim profile beam that provides rigid stiffness due to its height. Left, right, and dual output shafts, as well as gear boxes, are all standard for the narrow unit. The narrow unit is actuated by means of a 50mm wide AT20 belt. Rubber buffers and shock absorbers are optional. Wide Unit The wide unit is mounted to a wide profile beam to increase moment handling capabilities by spreading the V bearings far apart. Left, right, and dual output shafts, as well as gear boxes, are all standard for the wide unit. Actuation is achieved by means of a 50mm or 75mm wide AT20 belt. Rubber buffers and shock absorbers are optional.
