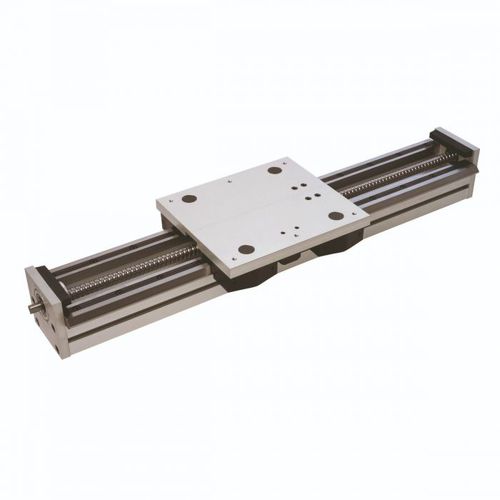

Ball screw linear unit HDCS electriccompact
Add to favorites
Compare this product
Characteristics
- Type
- ball screw
- Operation
- electric
- Other characteristics
- compact
- Stroke
Max.: 2,740 mm
(107.874 in)Min.: 0 mm
(0 in)
Description
HDCS (Heavy Duty Compact Screw) is based upon the HDCB compact beam with single edge V slides, and features ball screw actuation. System lengths are available up to 2740mm with the 25mm ball screws. Standard ball screw pitches include 5mm and 10mm. Easy access lubrication points for the ball screw return reduce maintenance time. Bellows covers are also available to further protect the unit in harsh environments.
