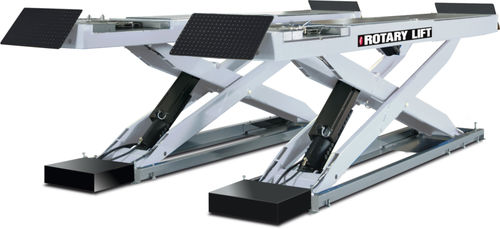

Scissors post lift M50NAT-52

5 tonelectro-hydraulic400 V

In ground scissor lifts of the M50-series are tailored for the receiving area and for axle measuring. Depending on the area of application, the M50-series is available in four basic configurations and two different platform lengths. The hydraulic synchronization system in master-slave construction prevents uneven lifting or lowering of the load. All hydraulic cylinders are screwable. This reduces the number of welding joints and increases serviceability. A long lifetime is the main focus of rust protection – which is achieved among others by the standard powder coating. The integrated emergency lowering device allows the lift to be lowered in the event of a power failure. The lift itself is operated from a safe distance via the operating panel. Safety is an essential factor. The platforms are constantly monitored via a light barrier. As of a height difference of +/- 50 mm, the automatic switchoff is immediately enabled. Non-contact inductive proximity switches provide for reliable functioning even in harsh environments. Moreover, there is no mechanical wear. The control console features an integrated hydraulic unit and thus considerably helps reduce the maintenance effort. Robust pushbuttons ensure smooth operation of the lift. The bearing is realized by means of maintenance-free plain bearings of precision. In this way, there is nothing to prevent a long lifetime. To facilitate flexible support of small as well as large vehicles, the lifting tables of all the LT models are equipped with extensible stepless platform elongations.
