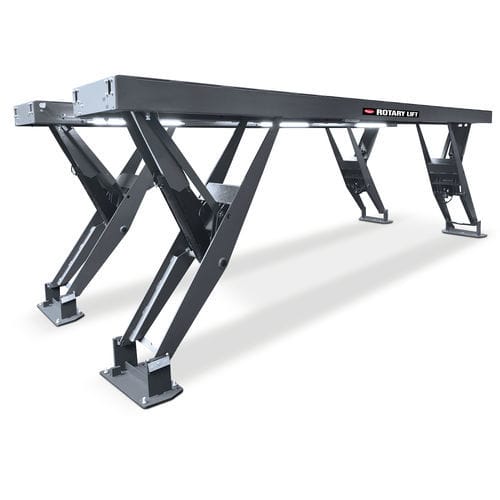

Scissors car lift V65N60-MB

electro-hydraulicfor car400 V

The V65N60-MB vertical scissor lift with 6.5 t lifting capacity and 6000 mm usable track length is ideally suited for utility vehicle workshops that want to make optimum use of their available space. Perfect corrosion protection – KTL coating plus powder coating as standard A lot of space under the lifting platform with side access The control console has an factory pre-assembled hydraulic unit and thus contributes significantly to a low installation effort. Placement is possible on the left or right. Documents or tablet computers will have their place on the integrated storage area of the control console that is also perfectly suited as a writing support. Durable push buttons allow a sensitive operation of the lifting platform. The standard CE stop ensures foot protection without foot guards. The lifting scissors engage close to the wheel contact area and thus give the lifting platform a very high stability. The assembly provides maximum clearance under the lifting platform and allows access from the side. The flat driving surface allows use at the headlight adjustment area. The main cylinders are equipped with a pneumatically unlockable set-down device. The ratchet strip is screwed and adjustable via screws. Smartly designed roll-back guards allow the full length of the track to be used. A galvanized running rail is fitted to the platform for the use of the jacking beam.
