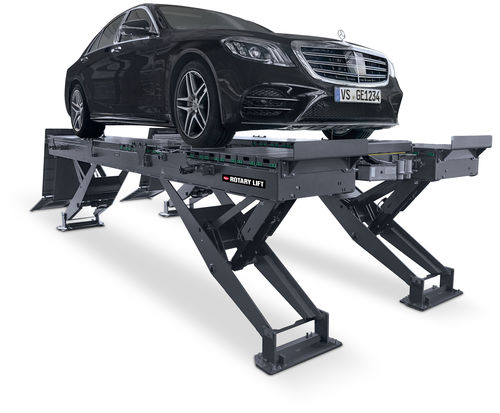

Scissors car lift MB series

electro-hydraulicfor car400 V

The vertical scissor lifts V55AK54-MB and V45AK48-MB are high-precision lifts for wheel alignment with a lifting capacity of 5.5 t for passenger and utility vehicles and 4.5 t for passenger vehicles. Perfect corrosion protection – KTL coating plus powder coating as standard Meets requirements of Mercedes-Benz A lot of space under the lifting platform with side access Integrated recesses with stainless steel supports allow all commercially available rotary disks to be fitted, prevent corrosion and allow the rotary disks to be moved effortlessly. The recesses can be closed completely when no rotary disk is used. The filler pieces are provided with plastic stops. Thus, corrosion is prevented and the noise is reduced. The main cylinders are equipped with a pneumatically unlockable set-down device. The ratchet strip is screwed and adjustable via screws. This guarantees precise wheel alignment. Smartly designed roll-back guards allow the full length of the track to be used. Galvanized running rail for standard jacking beam (4 t for V55AK54-MB, 2.6 t for V45AK48-MB). Reception from Smart to Sprinter van with long wheelbase possible. The control panel is equipped with a factory pre-assembled hydraulic unit that can be placed on the left or right. Documents or tablet computers will have their place on the control console that is also perfectly suited as a writing support. Durable push buttons allow a sensitive operation of the lift. The standard CE stop ensures foot protection without a foot guard. The lifting scissors engage close to the wheel contact area and thus give the lifting platform high stability. I
