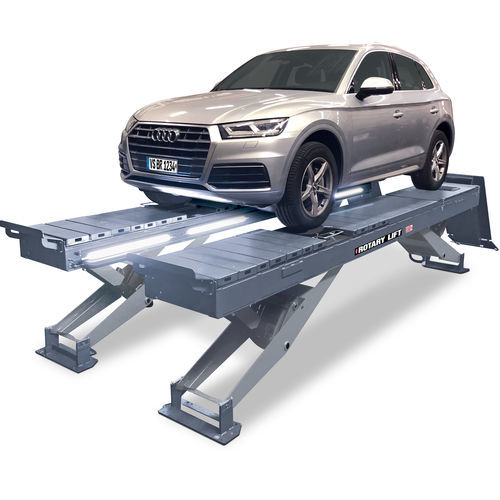

Vertical scissor lifts of the V55 series are high-precision lifting platforms for wheel alignment work and diagnostic workstations (assistance systems) with 5.5 t load capacity and 5400 mm usable track length. Depending on the area of application, the V55 series is available in both above ground and underfloor versions.
Perfect corrosion protection – KTL coating plus powder coating as standard
Meets requirements of leading car manufacturers
A lot of space under the lifting platform with side Access
Integrated recesses in the drive-on surface allow all standard rotary tables to be fitted. The stainless steel surface prevents corrosion and allows the rotary disks to be moved effortlessly.
The support surface for the rotary disk can be leveled; it is pre-adjusted to “0” in the factory.
The recesses can be closed completely when no rotary disk is used.
The filler pieces are provided with plastic stops. Thus, corrosion is prevented and the noise is reduced.
Sturdy plastic balls of the pneumatically lockable sliding plates ensure reliable and smooth operation and ensure a long service life.
The main cylinders are equipped with a pneumatically unlockable lowering device. The ratchet strip is screwed and adjustable via screws. This guarantees precise wheel alignment.
Smartly designed roll-back guards allow the full length of the runway to be used.
For the use of an additional jacking beam a galvanized track is installed.
