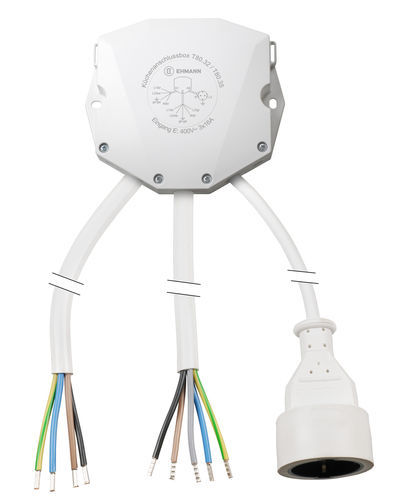

Wall-mounted junction box Pro T80.32

with sealed boxplasticfor cables

Product overview
Pre-assembled, permanently sealed professional kitchen connection box – no complex installation or loose components. For connecting hob and oven to a cooker connection outlet, even when positioned separately.

Features

• Available with 2 m or 5 m supply cable for increased flexibility
• VDE-certified lever terminals, fixed in the housing – suitable for connecting multiple appliances
• Cable management via cable-tie long hole on both sides
• Designed for installation on device boxes according to DIN 49073
• Wall mounting either via device box screws or additional fastening to the housing
• Equipped with strain reliefs for safety and stability
• Elegant, modern design
• Compliance with DIN EN 60670-1/22, 61535, 50525-2-11
• EHMANN advantage - 100% quality control, German manufacturer, 5-year warranty
• Reliable workmanship and function

Safety and warnings

• DANGER! Risk of death from electric shock, arc flash, or fire.
• Installation, connection and assembly must be carried out exclusively by a qualified electrician.
• Before commissioning and first use: read safety instructions and manual carefully.
• Technical data and country-specific regulations must be observed.
• Observe common safety rules, e.g. the '5 safety rules'.
• Do not operate damaged devices; damaged devices must be taken out of service immediately.
• The incoming supply (on site) must be protected by an all-pole disconnecting 16 A overcurrent protective device (all-pole with respect to active conductors). Overcurrent protection is provided on site.
• Avoid loop formation with excess cable length.
• The installed protective-contact socket must not be operable by unqualified persons in its installed condition.
• The PRO kitchen connection box must only be mounted on non-combustible substrates according to DIN 4102.
• The mounted protective-contact socket is intended for appliances with rated power not exceeding 3600 W.
• Connection of a multiple socket strip to the protective-contact socket is prohibited.
• Protect the device from direct moisture and wetness.
• Transport or improper use can damage the device. In such cases: do not open or operate the device. Replace damaged device.
• No warranty or guarantee is provided for any replacement or modification work on the PRO kitchen connection box.

Technical data
Supply cable: 2 m supply cable
Housing: Plastic

Specifications / Technical details

• Model: Pro T80.32
• Article number (SKU): 8066x0302
• EAN (GTIN-13): 4012096013792
• Supply cable: 2 m or 5 m
• Housing material: Plastic
• Lever terminals: VDE-certified, fixed in the housing
• Mounting: for device boxes according to DIN 49073, wall mounting via device box screws or fastening to housing
• Strain reliefs: present
• Max. rated power protective-contact socket: 3600 W
• Standards: DIN EN 60670-1/22, 61535, 50525-2-11
• Warranty: 5 years
