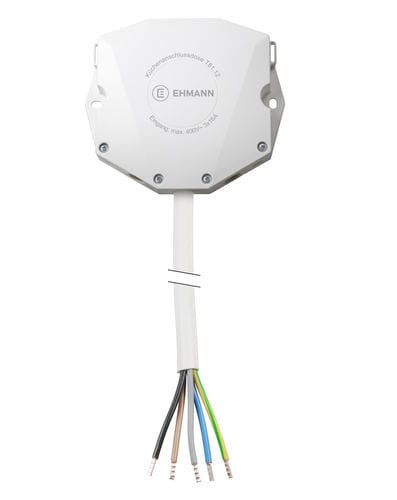

Surface mounted junction box Comfort T81.12

wall-mountedbuilt-inplastic

Product overview
Kitchen connection box with a pre-wired 5-core supply cable for hob or hob/oven combinations.

Features

• Pre-wired 5-core supply cable
• 2 m supply cable for increased installation flexibility
• VDE-certified lever terminals, fixed in the housing – suitable for connecting multiple appliances
• Cable management via cable-tie long hole on both sides
• Designed for mounting on appliance boxes according to DIN 49073
• Wall mounting either via appliance box screws or via an additional fastening point on the product housing
• Strain reliefs for safety and stability
• Compact, modern design
• Complies with DIN EN 60670-1/22, 61535, 50525-2-11
• EHMANN advantage – 100% quality control, German manufacturer, 5-year warranty
• EHMANN quality – precise workmanship and reliable function

Safety and warnings

• DANGER! Risk to life from electric shock, arc or fire.
• Installation, connection and assembly must only be carried out by a qualified electrician.
• Before commissioning and first use: read safety instructions and manual carefully.
• Technical data and country-specific regulations must be observed.
• Observe common safety rules, e.g. the '5 safety rules'.
• Do not operate damaged devices; damaged devices must be taken out of service immediately.
• The supply line (site-provided) must be protected by an all-pole disconnecting 16 A overcurrent protective device (all-pole with respect to active conductors). Protection is provided by the site installation.
• Avoid forming loops with excess cable length.
• This protective contact socket must not be operable by untrained persons when installed.
• The kitchen connection box is intended for mounting on appliance boxes according to DIN 49073.
• Mount the connection box only on non-combustible surfaces in accordance with DIN 4102.
• The installed protective contact socket is intended for appliances with a rated power not exceeding 3600 W.
• Connection of a mains distribution lead (power strip) to the protective contact socket is prohibited.
• Protect the device from direct moisture and water.
• Transport or improper use can damage the device. Do not open or operate a damaged device. Replace damaged devices.
• We assume no liability or warranty for all replacement or modification work on the COMFORT kitchen connection box.

Technical data
Supply cable: 2 m
Housing: plastic

Characteristics / technical specifications

• Brand: EHMANN
• Model / designation: Comfort T81.12
• Product number / SKU: 8166x0102
• GTIN / EAN: 4012096013815
• Pre-wired cable: 5-core, 2 m
• Lever terminals: VDE-certified, fixed in the housing
• Mounting: for appliance boxes according to DIN 49073, wall mounting possible
• Standards: DIN EN 60670-1/22, 61535, 50525-2-11
• Warranty: 5 years (manufacturer specification)
