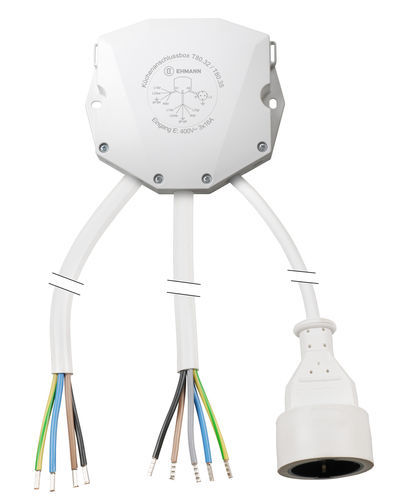

Wall-mounted junction box Pro T80.35surface mountedwith sealed boxplastic
Add to favorites
Compare this product
Characteristics
- Mounting
- wall-mounted, surface mounted
- Protection level
- with sealed box
- Material
- plastic
- Applications
- for cables, connection
Description
Product description
Professional, pre-wired and permanently sealed kitchen connection box – no complex installation or loose components. Designed to connect hob and oven to a cooker outlet even when installed separately. Available with 2 m or 5 m connection lead for greater flexibility.
Functions and benefits
Safety instructions
Technical specifications
Professional, pre-wired and permanently sealed kitchen connection box – no complex installation or loose components. Designed to connect hob and oven to a cooker outlet even when installed separately. Available with 2 m or 5 m connection lead for greater flexibility.
Functions and benefits
- VDE-certified lever terminals fixed in the enclosure – suitable for connecting multiple appliances
- Cable management via cable-tie slots on both sides
- Designed for mounting on device boxes according to DIN 49073
- Wall mounting via device box screws or additional fixing to the enclosure
- Equipped with strain reliefs for safety and stability
- Compact and discreet design
- Compliant with DIN EN 60670-1/22, 61535, 50525-2-11
- EHMANN advantage – 100% quality control, German manufacturer, 5-year warranty
- EHMANN quality – precise workmanship and reliable operation
Safety instructions
- Risk of electric shock, arc or fire. Installation, connection and mounting must be carried out only by a qualified electrician.
- Before commissioning and first use: read safety instructions and the manual carefully.
- Technical data and country-specific regulations must be observed.
- The supply cable (provided on site) must be protected by an all-pole disconnecting 16 A overcurrent protective device (all poles with regard to live conductors).
- Avoid forming loops when excess cable is present.
- Install the PRO kitchen connection box only on non-combustible surfaces in accordance with DIN 4102.
- The installed protective contact socket is intended for appliances with rated power not exceeding 3600 W.
- Connecting a multi-socket extension to the protective contact socket is prohibited.
- Protect the unit from direct moisture and wet conditions.
Technical specifications
- Connection lead: available with 2 m or 5 m lead (selectable on the product page)
- Enclosure material: plastic
- VDE-certified lever terminals fixed in the enclosure
- Cable management: cable-tie slots on both sides
- Mounting: for device boxes according to DIN 49073; wall mounting via device box screws or additional enclosure fixing
- Strain relief: included
- Standards and quality: DIN EN 60670-1/22, 61535, 50525-2-11
- Manufacturer: EHMANN (German manufacturer)
- Warranty: 5 years (manufacturer specification)
- EAN (GTIN-13): 4012096013808
- Article number / SKU / MPN: 8066x0305
