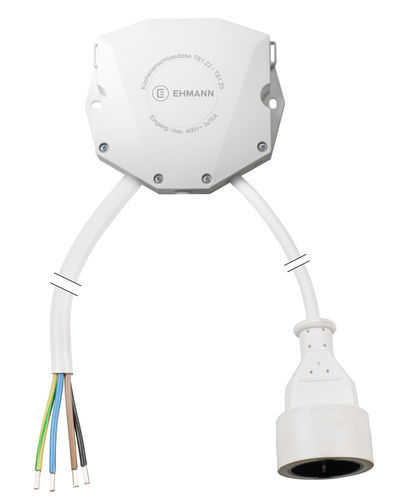

Flush-mount junction box Comfort T81.22
wall-mountedsurface mountedplastic

Flush-mount junction box - Comfort T81.22 - Bodo Ehmann GmbH - wall-mounted / surface mounted / plastic
Flush-mount junction box - Comfort T81.22 - Bodo Ehmann GmbH - wall-mounted / surface mounted / plastic
Flush-mount junction box - Comfort T81.22 - Bodo Ehmann GmbH - wall-mounted / surface mounted / plastic - image - 2
Flush-mount junction box - Comfort T81.22 - Bodo Ehmann GmbH - wall-mounted / surface mounted / plastic - image - 3
Flush-mount junction box - Comfort T81.22 - Bodo Ehmann GmbH - wall-mounted / surface mounted / plastic - image - 4
Flush-mount junction box - Comfort T81.22 - Bodo Ehmann GmbH - wall-mounted / surface mounted / plastic - image - 5
Flush-mount junction box - Comfort T81.22 - Bodo Ehmann GmbH - wall-mounted / surface mounted / plastic - image - 6
Flush-mount junction box - Comfort T81.22 - Bodo Ehmann GmbH - wall-mounted / surface mounted / plastic - image - 7
Add to favorites
Compare this product

Characteristics

Mounting
flush-mount, wall-mounted, surface mounted
Material
plastic
Applications
for cables

Description

Product description
  • Oven and hob connection box with pre-assembled supply cables for oven and hob
  • Available with 2 m or 5 m supply cables for greater installation flexibility
  • VDE-certified lever terminals fixed in the housing – allows connection of multiple devices
  • Cable management via elongated cable-tie slots on both sides
  • Designed for mounting on device boxes according to DIN 49073
  • Wall mounting optionally via device-box screws or additional fastening to the product housing
  • Equipped with strain reliefs for safety and stability
  • Compact, modern design


Quality and warranty
  • Compliant with DIN EN 60670-1/22, 61535, 50525-2-11
  • EHMANN advantage – 100% quality control, German manufacturer, 5-year warranty
  • EHMANN quality – reliable workmanship and function


Safety and installation notes
  • Installation, connection and assembly must be performed exclusively by a qualified electrician
  • The supply cable (provided on site) must be protected by an all-pole disconnecting 16 A overcurrent protective device (all-pole with respect to active conductors)
  • The mounted protective-earth socket is intended for appliances with a rated power not exceeding 3600 W
  • Connection of a power strip to the protective-earth socket is prohibited
  • Avoid forming loops with excess cable; protect the device from direct moisture and wet conditions


Technical specifications
  • Brand: EHMANN
  • Model: Comfort T81.22
  • Article number / MPN: 8166x0202
  • Product number (SKU): 8166x0202
  • EAN: 4012096013846
  • Supply cable: selectable 2 m or 5 m (standard version on the side: 2 m supply cable)
  • Housing material: plastic
  • Mounting: designed for device boxes according to DIN 49073; wall mounting via device-box screws or fastening to the housing
  • Standards: DIN EN 60670-1/22, 61535, 50525-2-11
  • Warranty: 5 years (manufacturer's information)
