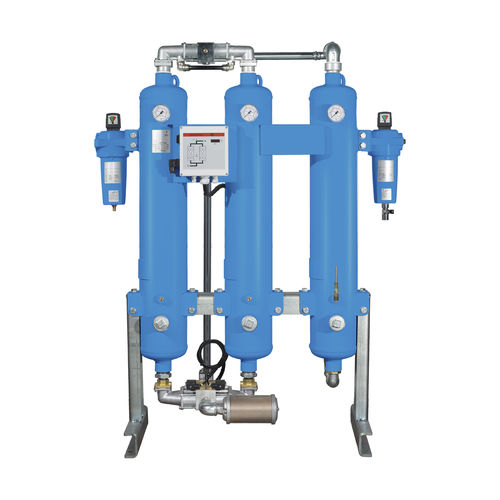

Adsorption compressed air dryer DACZ series

adsorption compressed air dryer
adsorption compressed air dryer
Add to favorites
Compare this product


Characteristics

Technology
adsorption
Capacity

Min.: 8 m³/h
(282.52 ft³/h)

Max.: 940 m³/h
(33,195.79 ft³/h)

Working pressure

8 bar
(116.03 psi)

Operating temperature

Min.: 0 °C
(32 °F)

Max.: 35 °C
(95 °F)

Weight

Min.: 15 kg
(33.1 lb)

Max.: 698 kg
(1,538.8 lb)

Dew point

Min.: -70 °C
(-94 °F)

Max.: 3 °C
(37.4 °F)

Description

With the BOGE DACZ series, we have combined a cold-regenerated DAZ adsorption dryer with a DCZ activated carbon adsorber. In addition to the pressure dew point of -40°C (-70°C optional) this allows you to limit the residual oil content of the compressed air to 0.003mg/m³.

Catalogs

Other BOGE products

Compressed Air treatment
