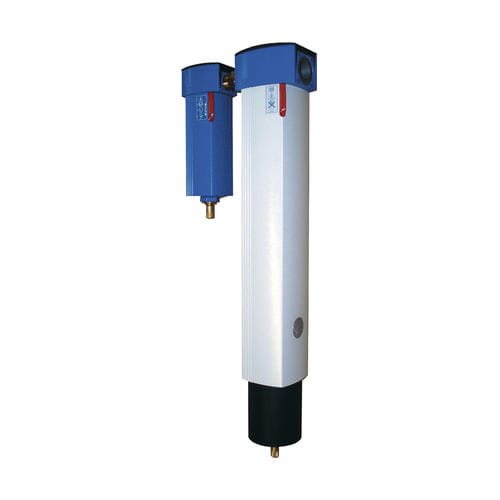

Membrane compressed air dryer DM series

membrane compressed air dryer
membrane compressed air dryer
Add to favorites
Compare this product


Other characteristics

0.42 m³/min, 0.56 m³/min, 0.84 m³/min, 1.11 m³/min, 1.47 m³/min
(14.83 ft³/min, 19.78 ft³/min, 29.66 ft³/min, 39.2 ft³/min, 51.91 ft³/min)

Working pressure

Max.: 9 bar
(130.53 psi)

Min.: 0 bar
(0 psi)


3 kg, 3.2 kg, 4.5 kg, 4.8 kg, 5.1 kg
(6.6 lb, 7.1 lb, 9.9 lb, 10.6 lb, 11.2 lb)


Easy installation and no extra effort. The BOGE membrane dryer lowers the pressure dew point to between 20 and 55 Kelvin. Our membrane dryers barely need any extra space and require no other electrical connections. The cost of assembly is also minimal. Ideally, the BOGE membrane dryer should be installed between the compressor and the tank or as a terminal dryer.


No catalogs are available for this product.

See all of BOGE‘s catalogs
