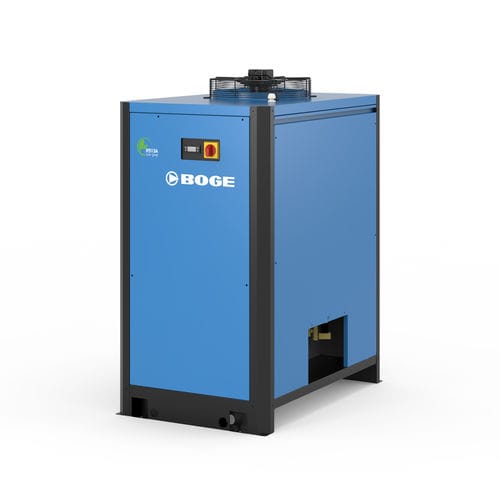

Refrigerated compressed air dryer DS series

refrigerated compressed air dryer
refrigerated compressed air dryer
refrigerated compressed air dryer
Add to favorites
Compare this product


Characteristics

Technology
refrigerated
Capacity

Min.: 12 m³/min
(423.78 ft³/min)

Max.: 35 m³/min
(1,236.01 ft³/min)

Working pressure

Min.: 0 bar
(0 psi)

Max.: 14 bar
(203.05 psi)

Motor power

Min.: 1.32 kW
(1.79 hp)

Max.: 35.1 kW
(47.72 hp)

Ambient temperature

Min.: 20 °C
(68 °F)

Max.: 50 °C
(122 °F)

Weight

Min.: 205 kg
(451.9 lb)

Max.: 270 kg
(595.2 lb)

Dew point

Min.: 3 °C
(37.4 °F)

Max.: 5 °C
(41 °F)

Description

All of the models of this series are designed for extremely low energy consumption: The smart control automatically switches off the refrigerant compressor at partial load or more favourable seasonal environmental conditions. The incoming compressed air is then cooled by the cold reserve stored in the heat exchanger. The compressor only starts up again when the compressed air has reached a certain temperature level. Pressure losses are effectively kept to a minimum, and the low refrigerant requirement combined with the low global warming potential (GWP) of the new refrigerant results in a delightfully low CO2 footprint. Product Next generation compressed air refrigerant dryer systematically designed to save energy advantages Digital control Energy efficient Hermetically sealed refrigerant circuit Low CO2 footprint Refrigerant R 513a Stable pressure dew point
