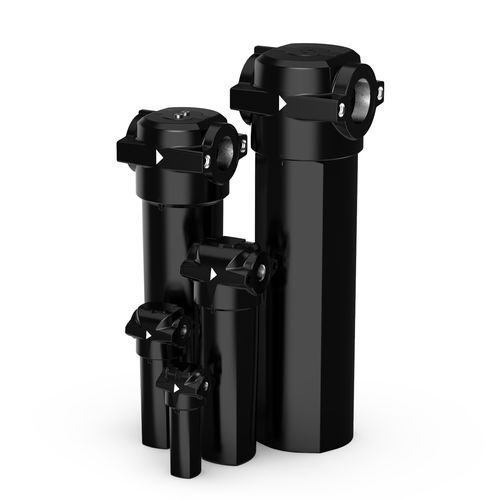

Cyclone separator Z series
coalescingwatercondensate

cyclone separator
cyclone separator
cyclone separator
cyclone separator
Add to favorites
Compare this product


Characteristics

Technology
cyclone, coalescing
Separated substance
water, condensate, gas
Application domain
for the food industry, for air compressors
Other characteristics
high-performance
Flow

Max.: 63.16 m³/min (2,230.474 ft³/min)

Min.: 0.64 m³/min (22.601 ft³/min)

Description

BOGE Z-2 series high-performance cyclones operate according to the principle of inertia to efficiently and reliably remove large quantities of liquids from compressed air in the form of droplets or wall flow. Their innovative design delivers optimised flow control with the lowest possible pressure losses at outstanding efficiencies of up to 99% – guaranteeing to keep operating costs constantly low. The Z-2 series has been designed for use between intercoolers and aftercoolers, in buffer tanks which handle large quantities of condensate or to protect downstream coalescing filters from heavy fluid contamination. Product Water separator / Cyclone separator Advantages 10-year guarantee on housing EU-VO 1935/2004 exemption certificate Nominal power range of 25% to 125% Simple, space-saving installation Suitable for use with foodstuffs in accordance with FDA Title 21 CFR Validated in accordance with ISO 12500 -1:2007 & ISO 8573 -1:2010

Catalogs

No catalogs are available for this product.

See all of BOGE‘s catalogs
