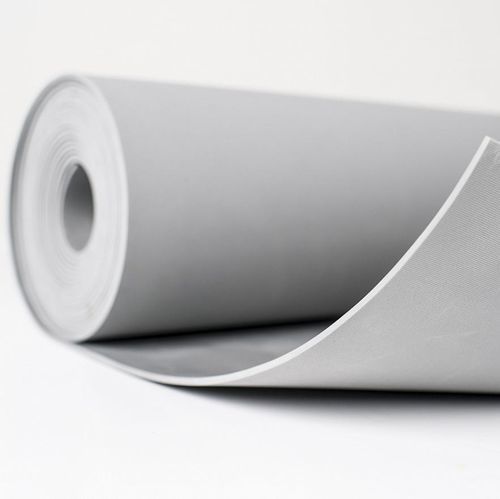

Electrically isolating mat DEK0-H1-1

rubbergray

Electrical insulating matting certified according to IEC 61111:2009 in class 0, with an operating voltage of 1,000 V, a test voltage of 5,000 V and a withstanding voltage of 10,000 V, with permanently vulcanized marking tape. Vulcanized elastomer with cloth impression on both sides is available in grey color, 2.5 mm thick (+/- 0.3mm) with basic weight 4.3 kg/m². - Class: 0 - Material: SBR-NR (Styrene-Butadiene Rubber - Natural Rubber) - Surface: Double side cloth impression - Color: Grey - Thickness: 2.4 mm (tolerance +/- 0.3 mm) - Basis weight: 4.3 kg/m² - Width: 1000 mm or 1200 mm (tolerance +/- 10 mm) - Length: 10 m (tolerance +/- 200 mm) - Hardness: 65 ± 5 Shore A - Environment: Interior - Halogen free - REACH compliant Technical Specifications: - Certified according to IEC 61111:2009 - Class 0 electrical insulating matting - Operating voltage: 1,000 V - Test voltage: 5,000 V - Withstanding voltage: 10,000 V - Permanently vulcanized marking tape - Material: SBR-NR - Surface: Double side cloth impression - Color: Grey - Thickness: 2.4 mm (tolerance +/- 0.3 mm) - Basis weight: 4.3 kg/m² - Width: 1000 mm or 1200 mm (tolerance +/- 10 mm) - Length: 10 m (tolerance +/- 200 mm) - Hardness: 65 ± 5 Shore A - Environment: Interior - Halogen free - REACH compliant
