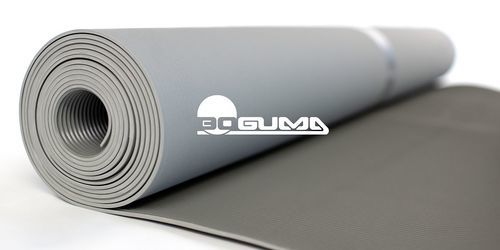

Electrically isolating mat DEK2-S7-IR

fine ribelastomerindoor

Product description
DEK2-S7-IR electrical insulating matting certified to IEC 61111:2009, Class 2. Designed for indoor electrical safety with operating voltage 17 000 V, test voltage 20 000 V and withstanding voltage 30 000 V. Manufactured from permanently vulcanized elastomer with S7 fine-ribbed pattern. Available colours: grey, dark grey, yellow. Nominal thickness 3.2 mm (tolerance +0.4 / -0.2 mm). Basis weight approx. 3.6 kg/m2. Intended for interior use only.

Key features

• Certified standard: IEC 61111:2009, Class 2
• Operating voltage: 17 000 V
• Test voltage: 20 000 V
• Withstanding voltage: 30 000 V
• Permanently vulcanized marking tape
• Material: vulcanized elastomer, S7 fine-ribbed pattern
• Thickness: 3.2 mm (tolerance +0.4 / -0.2 mm)
• Basis weight: 3.6 kg/m2
• Intended use: interior only

Available colours

• grey
• dark grey
• yellow

Certifications & Properties

• REACH compliant
• Halogen free

Documents available

• Certificate DEK2-S7-IR
• EU Declaration of Conformity
• Datasheet - DEK2-S7-IR - EN

Variants (table)
Id | Item number | Old number | Group | Class id | Rubber | Pattern | Color | Length (m) | Width (mm) | Thickness (mm) | Thickness tolerance | Weight (kg/m2)
1367 | DK_02_IR_S7_1_03-2 | DEK2-S7-IR | DK | 02 | IR | S7 | grey | 10 | 1200 | 3.2 | (+ 0.4 / - 0.2 mm) | 3.6
1368 | DK_02_IR_S7_1_03-2 | DEK2-S7-IR | DK | 02 | IR | S7 | grey | 10 | 1000 | 3.2 | (+ 0.4 / - 0.2 mm) | 3.6
1369 | DK_02_I8_S7_1_03-2 | DEK2-S7-IR | DK | 02 | IR | S7 | dark grey | 10 | 1000 | 3.2 | (+ 0.4 / - 0.2 mm) | 3.6
1370 | DK_02_I8_S7_1_03-2 | DEK2-S7-IR | DK | 02 | IR | S7 | dark grey | 10 | 1200 | 3.2 | (+ 0.4 / - 0.2 mm) | 3.6

Technical specifications

• Model: DEK2-S7-IR
• Class: DEK Class 2
• Standard: IEC 61111:2009
• Operating voltage: 17 000 V
• Test voltage: 20 000 V
• Withstanding voltage: 30 000 V
• Material: vulcanized elastomer, S7 fine-ribbed
• Thickness: 3.2 mm (tolerance +0.4 / -0.2 mm)
• Basis weight: 3.6 kg/m2
• Hardness: 65 ± 5 (Shore)
• Available widths: 1000 mm, 1200 mm
• Standard length: 10 m
• Environment: indoor use only
• Marking: permanently vulcanized marking tape
