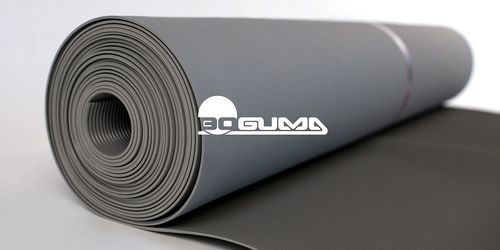

Electrically isolating mat DEK0-S7-IRfine ribelastomergray
Add to favorites
Compare this product
Characteristics
- Function
- electrically isolating
- Type
- fine rib
- Material
- elastomer
- Color
- gray
- Other characteristics
- REACH compliance, roll
- Length
Min.: 10,000 mm
(393.7 in)Max.: 10,000 mm
(393.7 in)- Width
Min.: 1,000 mm
(39 in)Max.: 1,200 mm
(47 in)- Thickness
Min.: 3 mm
(0.118 in)Max.: 3.6 mm
(0.142 in)
Description
Product summary
DEK0-S7-IR electrical insulating matting certified to IEC 61111:2009 (Class 0). Rated operating voltage 1,000 V, test voltage 5,000 V and withstanding voltage 10,000 V. Fine-ribbed (Pattern S7) vulcanized elastomer available in grey or dark grey. Thickness 3.2 mm (tolerance +0.4 / -0.2 mm). Basis weight 3.6 kg/m2. Permanently vulcanized marking tape incorporated.
Key features
Documents (available)
Variants (table)
Id | Item number | Old number | Group | ClassId | Rubber | Pattern | Color | Length (m) | Width (mm) | Thickness (mm) | Thickness description | Weight (kg/m2)
1365 | DK_00_IR_S7_1_03-2 | DEK0-S7-IR | DK | 00 | IR | S7 | grey | 10 | 1200 | 3.2 | (+ 0.4 / - 0.2 mm) | 3.6
1366 | DK_00_IR_S7_1_03-2 | DEK0-S7-IR | DK | 00 | IR | S7 | grey | 10 | 1000 | 3.2 | (+ 0.4 / - 0.2 mm) | 3.6
1371 | DK_00_I8_S7_1_03-2 | DEK0-S7-IR | DK | 00 | IR | S7 | dark grey | 10 | 1000 | 3.2 | (+ 0.4 / - 0.2 mm) | 3.6
1372 | DK_00_I8_S7_1_03-2 | DEK0-S7-IR | DK | 00 | IR | S7 | dark grey | 10 | 1200 | 3.2 | (+ 0.4 / - 0.2 mm) | 3.6
Technical specifications
DEK0-S7-IR electrical insulating matting certified to IEC 61111:2009 (Class 0). Rated operating voltage 1,000 V, test voltage 5,000 V and withstanding voltage 10,000 V. Fine-ribbed (Pattern S7) vulcanized elastomer available in grey or dark grey. Thickness 3.2 mm (tolerance +0.4 / -0.2 mm). Basis weight 3.6 kg/m2. Permanently vulcanized marking tape incorporated.
Key features
- Certification: IEC 61111:2009 — Class 0
- Operating voltage: 1,000 V
- Test voltage: 5,000 V
- Withstanding voltage: 10,000 V
- Material: vulcanized elastomer, fine-ribbed (Pattern S7)
- Thickness: 3.2 mm (tolerance +0.4 / -0.2 mm)
- Basis weight: 3.6 kg/m2
- Hardness: 65 ± 5 (Shore A)
- Available colours: grey, dark grey
- Marking: permanently vulcanized marking tape
- Compliance: REACH, halogen free
Documents (available)
- Certificate DEK0-S7-IR
- EU Declaration of Conformity
- Datasheet - DEK0-S7-IR (EN)
Variants (table)
Id | Item number | Old number | Group | ClassId | Rubber | Pattern | Color | Length (m) | Width (mm) | Thickness (mm) | Thickness description | Weight (kg/m2)
1365 | DK_00_IR_S7_1_03-2 | DEK0-S7-IR | DK | 00 | IR | S7 | grey | 10 | 1200 | 3.2 | (+ 0.4 / - 0.2 mm) | 3.6
1366 | DK_00_IR_S7_1_03-2 | DEK0-S7-IR | DK | 00 | IR | S7 | grey | 10 | 1000 | 3.2 | (+ 0.4 / - 0.2 mm) | 3.6
1371 | DK_00_I8_S7_1_03-2 | DEK0-S7-IR | DK | 00 | IR | S7 | dark grey | 10 | 1000 | 3.2 | (+ 0.4 / - 0.2 mm) | 3.6
1372 | DK_00_I8_S7_1_03-2 | DEK0-S7-IR | DK | 00 | IR | S7 | dark grey | 10 | 1200 | 3.2 | (+ 0.4 / - 0.2 mm) | 3.6
Technical specifications
- Model: DEK0-S7-IR
- Pattern: S7 (fine-ribbed)
- Material: vulcanized elastomer
- Thickness: 3.2 mm (tolerance +0.4 / -0.2 mm)
- Basis weight: 3.6 kg/m2
- Hardness: 65 ± 5 (Shore A)
- Certification: IEC 61111:2009, Class 0
- Electrical ratings: operating 1,000 V; test 5,000 V; withstanding 10,000 V
- Marking: permanently vulcanized marking tape
- Available colours: grey, dark grey
- Compliance: REACH, halogen free
