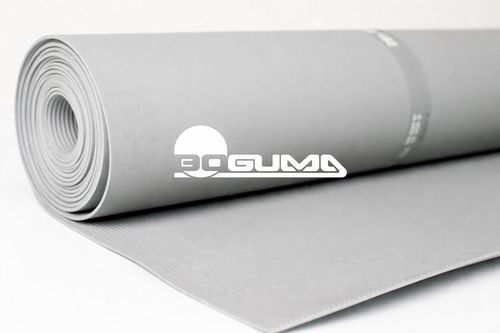

Electrically isolating mat DEK1-S7-IR

fine ribelastomerindoor

Product description Electrical insulating mat certified to IEC 61111:2009 (Class 1) for indoor electrical protection. Rated operating voltage 7,500 V, test voltage 10,000 V and withstanding voltage 20,000 V. Material: vulcanized elastomer with permanently vulcanized marking tape. Pattern S7 (fine ribbed). Thickness 3.2 mm (+0.4 / -0.2 mm). Basis weight approx. 3.6 kg/m2.

Available colours

• grey
• dark grey

Key parameters

• Standard: IEC 61111:2009 (Class 1)
• Operating voltage: 7,500 V
• Test voltage: 10,000 V
• Withstanding voltage: 20,000 V
• Material: vulcanized elastomer
• Pattern: S7 (fine ribbed)
• Thickness: 3.2 mm (tolerance +0.4 / -0.2 mm)
• Basis weight: 3.6 kg/m2
• Hardness: 65 ± 5
• Marking: permanently vulcanized marking tape
• Environmental / compliance: REACH, halogen free
• Typical roll lengths/widths: length 10 m; widths 1200 mm or 1000 mm

Variants (selection) 1363 | DK_01_IR_S7_1_03-2 | DEK1-S7-IR | IR | S7 | grey | 10 m | 1200 mm | 3.2 mm | 3.6 kg/m2
1364 | DK_01_IR_S7_1_03-2 | DEK1-S7-IR | IR | S7 | grey | 10 m | 1000 mm | 3.2 mm | 3.6 kg/m2
1373 | DK_01_I8_S7_1_03-2 | DEK1-S7-IR | IR | S7 | dark grey | 10 m | 1200 mm | 3.2 mm | 3.6 kg/m2
1374 | DK_01_I8_S7_1_03-2 | DEK1-S7-IR | IR | S7 | dark grey | 10 m | 1000 mm | 3.2 mm | 3.6 kg/m2

Available documents

• Certificate DEK1-S7-IR
• EU Declaration of Conformity
• Datasheet - DEK1-S7-IR - EN

Application / Notes

• Intended for indoor use as electrical insulating protection when working on or near live equipment within rated voltages
• Supplied in rolls (standard length 10 m). Width and length tolerances according to specification
• Thickness tolerance: +0.4 / -0.2 mm
• Does not include pricing information
