Jaw crusher BPJ120

mobilediesel engineprimary

Overview

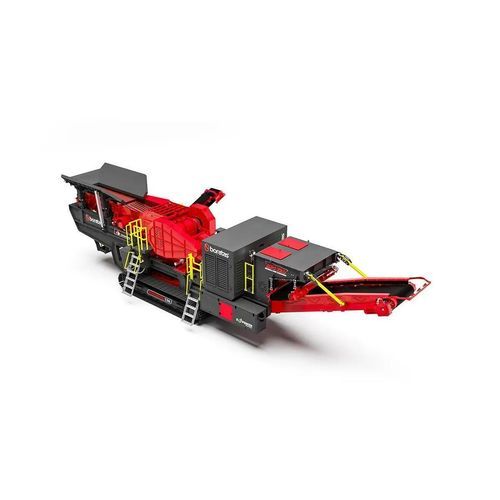

The Borataş Mobile Jaw Crusher BPJ120 is a primary jaw crusher engineered for high-capacity crushing of natural stone, hard rock and recycled construction materials in mining, quarrying and recycling sites. The track-mounted BPJ120 combines a wide 1,200 x 750 mm feed opening with a high throughput range to deliver efficient primary crushing and on-site mobility. It is designed for operational efficiency, straightforward maintenance and flexible power configurations.

Key technical summary (from page)
Capacity: 150 - 400 tph
Feed Opening: 1,200 x 750 mm
Weight: 58,000 kg
Transport Length: 16,800 mm
Transport Width: 3,300 mm
Transport Height: 3,650 mm

BPJ120 Characteristics

• High-capacity jaw crushing — 1,200 x 750 mm feed opening enables processing of large material sizes for efficient throughput.
• Heavy-duty jaw mechanism — single-toggle jaw and reinforced components for long service life under demanding conditions.
• Advanced hybrid drive system — Diesel-Electric hybrid option to reduce fuel consumption and provide flexible site power setups.
• Optimized mobility and setup — track-mounted chassis for fast relocation and stable operation in confined sites.
• Operator-friendly features — PLC controls, wireless remote operation and accessible maintenance points to minimize downtime.

Standard Features

• High-capacity jaw crusher
• Electric or Diesel drive system (hybrid option)
• Hydraulic foldable bypass side belt
• Hydraulic foldable side and rear hopper covers
• Wireless remote control
• PLC control system
• Drum conveyor motors
• Vibratory feeder and independent double-deck pre-screen
• Lighting arm

Optional Features

• Metal separator magnet
• Hardox armored hopper
• Automatic conveyor lubrication system
• Dust reduction system
• Main conveyor cover

Product description (detailed)

• Primary purpose: heavy-duty primary jaw crushing for mining, quarrying and recycling production lines.
• Design: track-mounted model from the Borataş Jawtrack series, designed for larger size and increased material handling compared with smaller series units.
• Drive and power: Diesel-Electric hybrid system for fuel efficiency; configurable for electric-only or diesel-only operation depending on site requirements.
• Construction and durability: robust single-toggle jaw design and heavy-duty components engineered for sustained operation in harsh environments.
• Maintenance and controls: operator-focused layout with PLC control and wireless remote, plus easily accessible maintenance points to reduce downtime.

Technical specifications

• Model: BPJ120
• Capacity: 150 - 400 tph
• Feed opening: 1,200 x 750 mm
• Weight (approx.): 58,000 kg
• Transport length: 16,800 mm
• Transport width: 3,300 mm
• Transport height: 3,650 mm
• Drive system: Diesel-Electric hybrid (configurable as electric or diesel)
• Chassis: track-mounted for optimized mobility and fast setup
• Key components: single-toggle jaw, vibratory feeder, independent double-deck pre-screen, drum conveyor motors, PLC control, wireless remote
