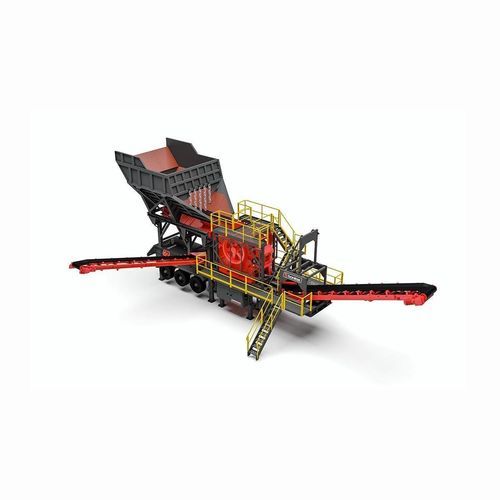

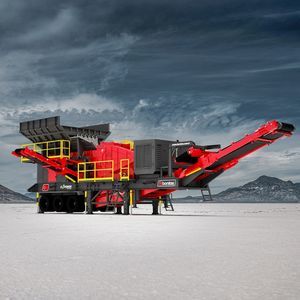

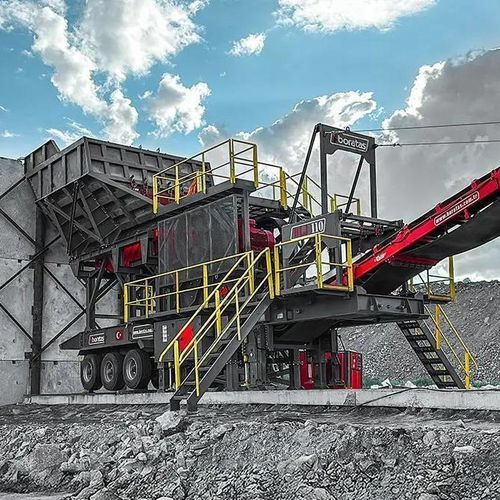

Jaw crusher BLJ110

mobilecompactprimary

Overview Borataş® Wheeled Mobile Jaw Crusher BLJ110 is designed for primary crushing of highly abrasive and hard stones such as granite, basalt and gabbro. The unit can be configured as a two-chassis mobile plant with an additional cone crusher or as a three-chassis mobile plant with a vertical shaft impact crusher. Mobile configuration reduces transport and installation costs and allows fast commissioning with a single operator, making it suitable for temporary quarries and relocation between job sites.

BLJ110 Characteristics

• Jaw crusher technology: robust fixed and moving jaw plates for consistent high-capacity reduction.
• Flexible performance: handles varying feed sizes and high hardness; suitable for primary and secondary stages.
• Mobility and quick setup: wheel-mounted design for simplified transport and compact footprint for fast site commissioning.
• User-friendly operation: intuitive control system, simple operator interface and optimized maintenance access points.
• Safety features: emergency stop, safety guards and hydraulically adjustable jaw opening for controlled operation.
• Durable construction: manufactured with high-grade steel, wear-resistant parts and replaceable crusher plates.

Standard Features

• High-capacity jaw crusher
• Hydraulically folding conveyor
• Wireless remote control
• PLC control system
• Electric drive
• Gear motor-driven conveyors
• Grizzly vibrating feeder

Optional Features

• Magnetic metal separator
• Hardox-lined hopper
• Automatic lubrication system
• Dust suppression / reduction system

Usage and Application Notes

• Designed for primary crushing of highly abrasive and hard rock types.
• Can be combined with additional crushing or screening units (cone crusher or VSI) to form two- or three-chassis mobile plants.
• Optimized for temporary quarry work, fast relocation and reduced installation costs.

Technical specifications

• Capacity: 100 – 300 t/h
• Max. feed size: 850 mm
• Jaw opening: 1100 x 850 mm
• Hopper volume: 35 m³
• Total motor power: 166 kW
• Weight: 52,000 kg
• Transport dimensions: 12,300 x 3,700 x 4,600 mm
• Operating dimensions: 19,575 x 13,500 x 8,000 mm
