Jaw crusher BLJ120

mobilecompactprimary

Product Overview

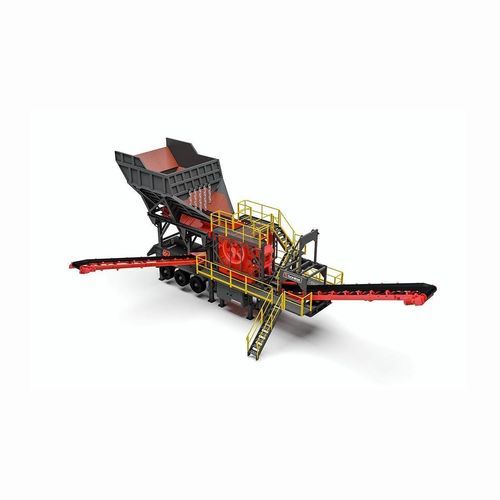

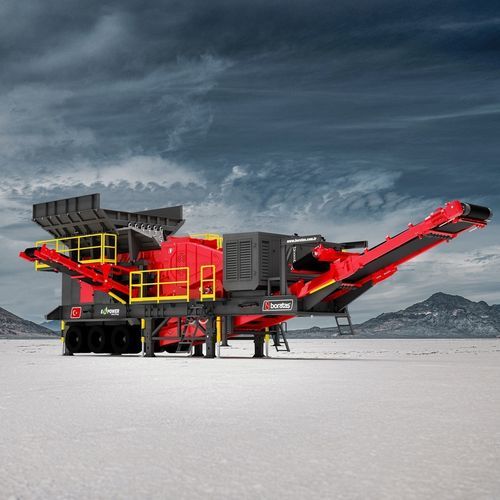

Borataş® Wheeled Mobile Jaw Crusher BLJ120 is engineered for primary crushing of highly abrasive and hard materials such as granite, basalt and gabbro. The unit can be configured as a two-chassis mobile plant with an additional cone crusher or as a three-chassis plant with a vertical shaft impact crusher.

Operational advantages
The BLJ120 is suited to temporary quarries and mobile operations, offering reduced transport and installation costs compared with fixed plants. Fast setup and wheel-mounted mobility facilitate quick relocation between sites, saving time and improving project flexibility.

Specifications

• Capacity: 150 – 350 t/h
• Max. Feed Size: 750 mm
• Jaw Opening: 1200 x 700 mm
• Hopper Volume: 25 m³
• Total Motor Power: 166 kW
• Weight: 45000 kg
• Transport Dimensions: 13,100 x 3,700 x 4,600 mm
• Operating Dimensions: 17,000 x 5,700 x 6,200 mm

BLJ120 Characteristics

• Jaw Crusher Technology: Powerful 1200 x 700 mm jaw crusher delivers consistent primary reduction for very hard and abrasive rocks.
• Flexible Performance: Adapts to different material types and supports primary and secondary crushing configurations.
• Mobility and Quick Setup: Wheel-mounted design and compact layout allow rapid commissioning and site-to-site transfer.
• User-Friendly Operation: Intuitive controls, accessible components and quick-adjustment features simplify operation and maintenance.
• Enhanced Safety: Hydraulic adjustment, safety guards and emergency stop systems protect operators and equipment.
• Durable Construction: High-strength steel frame with wear-resistant, replaceable jaw plates for simplified servicing.

Standard Features

• High-capacity jaw crusher
• Hydraulic folding conveyor
• Wireless remote control
• PLC control system
• Electric operation
• Gear motor-driven conveyors
• Grizzly vibrating feeder

Optional Features

• Magnetic metal separator
• Hardox-lined hopper
• Automatic lubrication system
• Dust reduction system

Technical specifications

• Model: BLJ120
• Capacity: 150 – 350 t/h
• Max. Feed Size: 750 mm
• Jaw Opening: 1200 x 700 mm
• Hopper Volume: 25 m³
• Total Motor Power: 166 kW
• Weight: 45000 kg
• Transport Dimensions: 13,100 x 3,700 x 4,600 mm
• Operating Dimensions: 17,000 x 5,700 x 6,200 mm
• Construction: Wheel-mounted, high-strength steel, wear-resistant components
• Controls: PLC control system, wireless remote control
• Conveyors: Hydraulic folding conveyors, gear motor-driven conveyors
• Feeder: Grizzly vibrating feeder
• Safety: Hydraulic adjustment, safety guards, emergency stop systems
• Optional systems: Magnetic separator, Hardox-lined hopper, automatic lubrication, dust reduction
