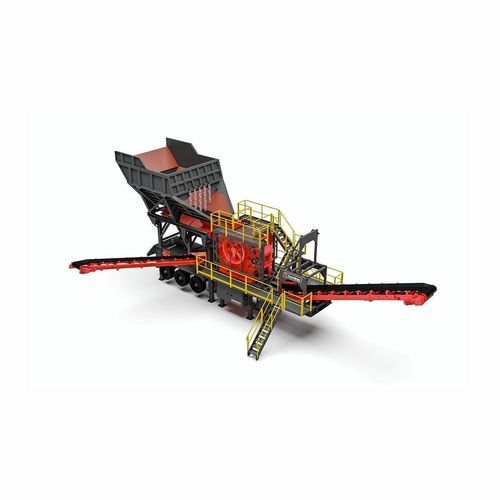

Jaw crusher BLJ106

mobileprimaryhigh-capacity

Overview

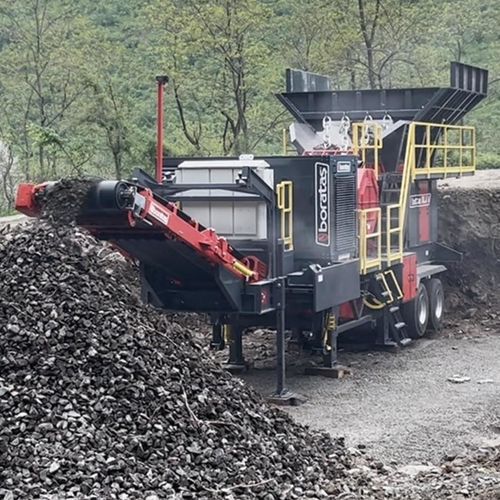

Borataş® Wheeled Mobile Jaw Crusher BLJ106 is specifically designed for primary crushing of highly abrasive and hard rocks such as granite, basalt and gabbro. The system can be supplied as a two-chassis mobile plant with an additional cone crusher or as a three-chassis mobile plant with a vertical shaft impact crusher.

Benefits
Compared to stationary plants, the BLJ106 mobile system reduces transport and installation costs, allows rapid relocation for temporary quarries and minimizes downtime. It enables easy mobility and quick commissioning with a single operator, improving site productivity and flexibility.

BLJ106 Characteristics

• Jaw Crusher Technology: Robust jaw crusher with fixed and moving jaw plates for efficient primary crushing of hard, abrasive materials.
• Flexible and Powerful Performance: Suitable for primary and secondary crushing; handles varying feed sizes and material hardness while maintaining reliable throughput.
• Mobility and Quick Setup: Wheel-mounted design for fast transport between sites and minimal setup time.
• User-Friendly Operation: Intuitive controls, simple interface and quick-adjust systems for easier operation and maintenance access.
• Enhanced Safety Features: Emergency stop systems, safety guards and hydraulically adjustable jaw opening to improve on-site safety.
• Durable Build and Design: Main components in high-quality steel; wear-resistant, easily replaceable crusher plates to maximize uptime.

Standard Features

• High-capacity jaw crusher
• Hydraulic folding conveyor
• Wireless remote control
• PLC control system
• Electric operation
• Gear motor-driven conveyors
• Grizzly vibrating feeder

Optional Features

• Magnetic metal separator
• Hardox-lined hopper
• Automatic lubrication system
• Dust reduction system

Technical Specifications

• Capacity: 70 – 200 t/h
• Max. Feed Size: 600 mm
• Jaw Opening: 1000 x 600 mm
• Hopper Volume: 15 m³
• Total Motor Power: 114 kW
• Weight: 37000 kg
• Transport Dimensions: 11500 x 3500 x 4600 mm
• Operating Dimensions: 15000 x 5300 x 6000 mm
