Impact crusher BPK100

mobilehigh-capacitycrawler

Product overview

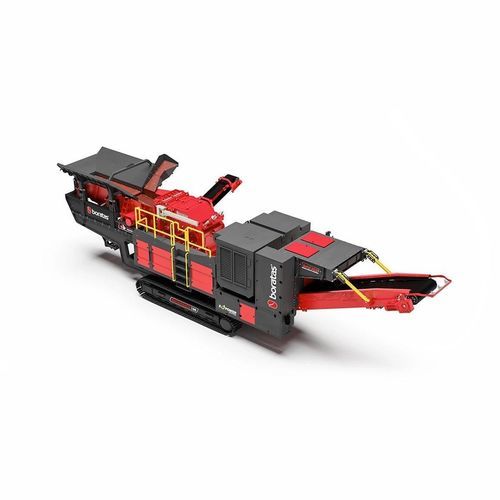

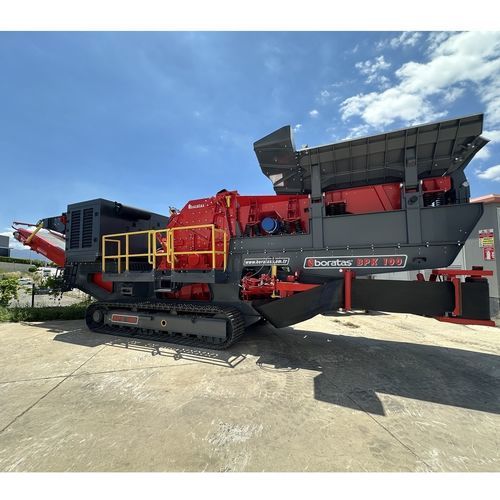

Borataş® Rocktrack Series Mobile Impact Crusher BPK100 is a track-mounted mobile crushing unit designed to deliver high efficiency, a wide reduction range and superior cubical shaping of the final product. Available in standard and customizable configurations to meet high-capacity production and strict product quality requirements.

Specifications
Capacity: 100 - 220 tph
Feed Opening: 1,020 x 880 mm
Weight: 42,000 kg
Transport Length: 15,140 mm
Transport Width: 3,100 mm
Transport Height: 3,600 mm

Key characteristics

• High-performance impact crushing mechanism: Advanced impact crushing system provides efficient, precise reduction and optimized crushing motion for improved throughput.
• Adjustable crushing configurations: Multiple adjustable settings allow operators to fine-tune feed size and crusher parameters for control over product gradation.
• Operator-focused design: Easy access to maintenance points and simplified cleaning procedures reduce downtime; intuitive controls support straightforward operation.
• Mobility and versatility: Track-mounted design ensures rapid setup and on-site processing to streamline logistics and reduce material transport.
• Electric power option: Electric drive enhances fuel efficiency and lowers the machine's environmental footprint.
• Impact crusher construction: Heat-treated rotor for stress relief after welding; bolt-mounted side liners and impact plates for quick replacement; two-piece housing enables hydraulic adjustment of the crusher feed opening (CSS).

Standard Features

• PDK Series impact crusher offering high efficiency and large capacity
• Hydraulically foldable bypass side conveyor
• Hydraulically foldable side and rear hopper covers
• Wireless remote control
• PLC control system
• Electric drive system
• Drum-type conveyor motors
• Vibrating feeder with double-deck pre-screen
• Lighting arm

Optional Features

• Magnetic separator
• Hardox-lined hopper
• Automatic conveyor lubrication system
• Dust suppression system
• Main conveyor cover

Technical specifications

• Model: BPK100
• Series: Rocktrack / Tracked Mobile Impact Crusher
• Capacity: 100 - 220 tph
• Feed opening (WxH): 1,020 x 880 mm
• Operating weight (approx.): 42,000 kg
• Transport dimensions (L x W x H): 15,140 mm x 3,100 mm x 3,600 mm
• Drive: Electric drive system (standard)
• Control: PLC control system with wireless remote
• Crusher type: Impact crusher with heat-treated rotor and bolt-mounted wear parts
• Mobility: Track mounted
