Impact crusher BPK125

mobilediesel enginehigh-capacity

Overview

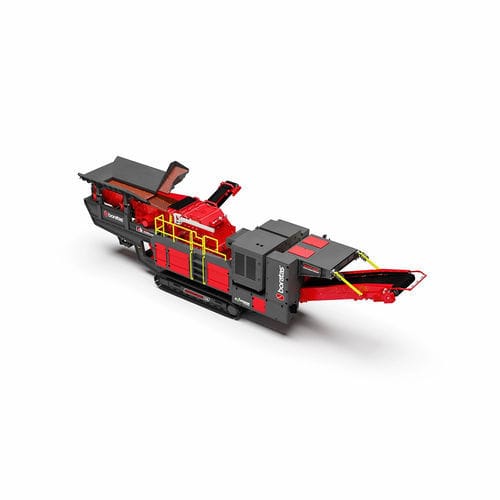

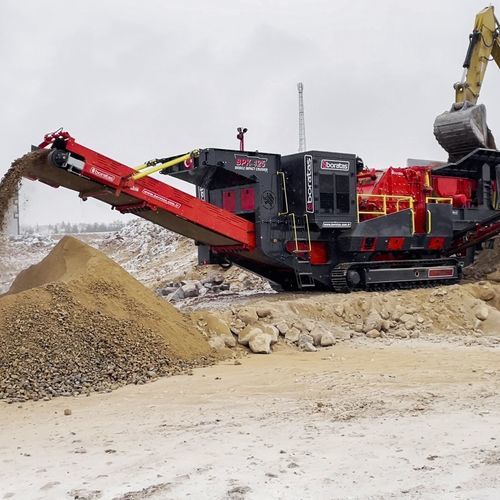

Borataş® Rocktrack Series Mobile Impact Crusher BPK125 is a tracked mobile impact crusher designed for high-capacity aggregate production and recycling. The unit combines mobility with configurable crushing parameters to deliver consistent cubic product and on-site processing efficiency.

Product Summary
The BPK125 is offered in standard and customizable configurations to meet varied production needs. Available drive options include hybrid (diesel-electric), electric or diesel to adapt to site power availability and operational targets.

BPK125 Characteristics

• High-performance impact crushing mechanism: PDK series impact crusher providing precise reduction and optimized particle shape.
• Adjustable crushing configurations: Hydraulic CSS adjustment and configurable feed settings for control over final product size.
• Operator-centric design: Accessible maintenance points, simplified cleaning and an intuitive PLC control with wireless remote for reduced downtime.
• Mobility and flexibility: Tracked chassis for easy relocation and fast on-site setup to process material at the source.
• Hybrid power option: Diesel-electric hybrid drive for improved fuel efficiency and lower site emissions where required.
• Robust crusher unit details: Heat-treated rotor, bolt-connected replaceable side liners and impact plates, two-part moving frame enabling hydraulic feed opening adjustment.

Specifications

• Capacity: 150 - 350 tph
• Rotor diameter: 1,200 mm
• Rotor width: 1,250 mm
• Weight: 53,000 kg
• Transport Length: 16,100 mm
• Transport Width: 3,520 mm
• Transport Height: 3,600 mm

Standard Features

• PDK series impact crusher
• Hydraulically foldable bypass side conveyor
• Hydraulically foldable side and rear hopper covers
• Wireless remote control
• PLC control system
• Electric or diesel drive system
• Drum-type conveyor motors
• Vibrating feeder with double-deck pre-screen
• Lighting arm

Optional Features

• Magnetic separator
• Hardox-lined hopper
• Automatic conveyor lubrication system
• Dust suppression system
• Main conveyor cover

Technical specifications

• Model: BPK125
• Capacity: 150 - 350 tph
• Rotor diameter: 1,200 mm
• Rotor width: 1,250 mm
• Weight: 53,000 kg
• Transport Length: 16,100 mm
• Transport Width: 3,520 mm
• Transport Height: 3,600 mm
• Drive: Hybrid (Diesel-Electric) or electric/diesel options
• Control: PLC control system, wireless remote control
• Feeding: Vibrating feeder with double-deck pre-screen
• Crusher unit: PDK series impact crusher with bolt-connected side liners and hydraulically adjustable feed opening (CSS)
