Impact crusher BPK125-S

mobilediesel enginefor mineral material

Product overview

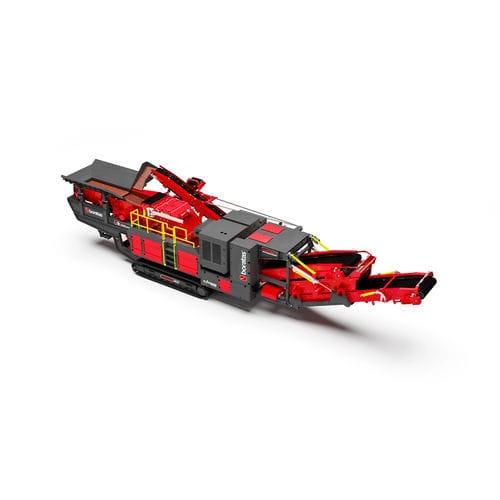

Boratas® Rocktrack BPK125-S mobile impact crusher is engineered for efficient material reduction in aggregate production and recycling operations. The unit is supplied as a closed-circuit plant with integrated final screening and is suitable for on-site processing where mobility and precise size control are required.

Specifications

• Capacity: 150 - 350 tph
• Rotor diameter: 1,200 mm
• Rotor width: 1,250 mm
• Screen: Single-deck, 1,500 x 3,600 mm
• Weight: 59,000 kg
• Transport length: 18,200 mm
• Transport width: 3,650 mm
• Transport height: 3,600 mm

BPK125-S characteristics

• Impact crushing mechanism — Impact crusher rotor and anvils designed for controlled material breakage; heat-treated rotor after welding to relieve stress and ensure dimensional stability.
• Closed-circuit final screening — Integrated return conveyor and single-deck screening maintain product size specification and improve circuit consistency.
• Operator-focused design — Accessible maintenance points, simplified cleaning procedures and an intuitive PLC-based control interface to reduce downtime and ease operation.
• Mobility and flexibility — Tracked chassis for site-to-site mobility, quick setup and on-site processing capability.
• Hybrid power options — Diesel, electric or hybrid diesel-electric drive configurations to match site power availability and fuel-efficiency requirements.
• Impact crusher unit — Bolt-connected side liners and impact plates for easy replacement; two-part housing with hydraulic adjustment of feed opening (CSS) for straightforward settings and maintenance.

Standard features

• Single-deck return screen
• PDK series impact crusher
• Hydraulically foldable bypass side conveyor
• Hydraulically foldable side and rear hopper walls
• Wireless remote control
• PLC control system
• Electric or diesel drive options
• Drum motors for conveyors
• Vibrating feeder with double-deck pre-screen
• Lightning arm

Optional features

• Magnetic separator
• Hardox-lined hopper
• Automatic conveyor lubrication system
• Dust suppression system
• Main conveyor cover

Technical specifications

• Model: BPK125-S
• Capacity range: 150 - 350 tph
• Rotor diameter: 1,200 mm
• Rotor width: 1,250 mm
• Screen dimensions: Single-deck, 1,500 x 3,600 mm
• Operating weight: 59,000 kg
• Transport dimensions (L x W x H): 18,200 mm x 3,650 mm x 3,600 mm
• Drive options: Electric or diesel (hybrid diesel-electric available)
