Impact crusher BPK100-S

mobilediesel enginehigh-capacity

Overview

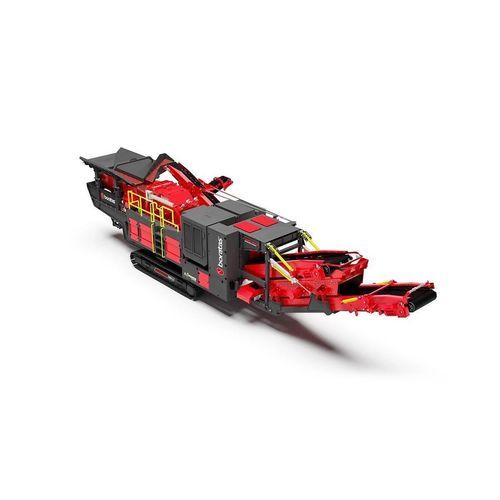

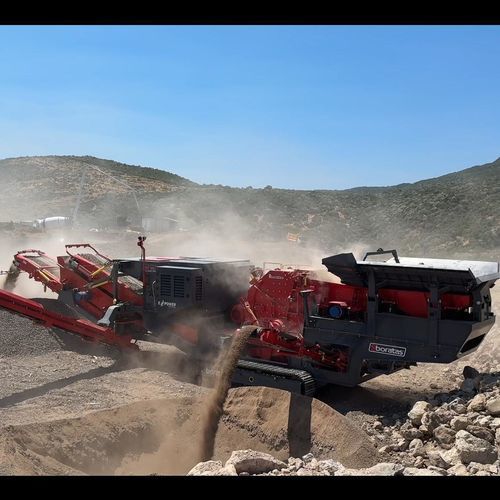

Boratas® Rocktrack BPK100-S tracked mobile impact crusher is designed for high-capacity aggregate production and recycling applications. The unit combines a high-efficiency impact crushing system with an integrated closed-circuit screening solution to produce consistently graded, cubic-shaped material.

Specifications

• Capacity: 100 - 220 tph
• Rotor diameter: 1,100 mm
• Rotor width: 985 mm
• Screen: Single-deck, 1,300 x 3,650 mm
• Weight: 48,000 kg
• Transport Length: 17,300 mm
• Transport Width: 3,260 mm
• Transport Height: 3,600 mm

BPK100-S Characteristics

• 1 — High-performance impact crushing mechanism: optimized impact motion and robust construction for efficient reduction and target product shape.
• 2 — Closed-circuit final screening system: integrated return circuit to ensure end-product size consistency and reduced recirculating load.
• 3 — Operator-focused design: accessible maintenance points, simplified cleaning, and an intuitive control interface to reduce downtime.
• 4 — Mobility and flexibility: track-mounted chassis for rapid relocation and on-site processing with reduced logistics.
• 5 — Hybrid (diesel-electric) power option: selectable diesel, electric or hybrid drive to optimize fuel use and site power constraints.
• 6 — Impact crusher unit construction: heat-treated rotor after welding, bolt-connected side liners and impact plates, two-part housing with hydraulic CSS (closed side setting) adjustment for straightforward service.

Standard Features

• Single-deck return screen
• PDK series impact crusher for high throughput
• Hydraulically foldable bypass side conveyor
• Hydraulically foldable side and rear hopper walls
• Wireless remote control
• PLC control system
• Electric or diesel drive options
• Drum motors for conveyors
• Vibrating feeder with double-deck pre-screen
• Lighting arm

Optional Features

• Magnetic separator
• Hardox-lined hopper
• Automatic conveyor lubrication system
• Dust suppression system
• Main conveyor cover

Other Notable Attributes

• Track-mounted mobility for site versatility
• Hybrid drive availability
• Foldable components for transport efficiency
• Wireless control for remote operation
• PLC control for automation and monitoring

Technical Specifications

• Model: BPK100-S
• Capacity range: 100 - 220 tph
• Rotor diameter: 1,100 mm
• Rotor width: 985 mm
• Screen: Single-deck 1,300 x 3,650 mm
• Weight: 48,000 kg
• Transport dimensions (L x W x H): 17,300 x 3,260 x 3,600 mm
• Drive options: Electric or Diesel, with Hybrid (Diesel-Electric) availability
