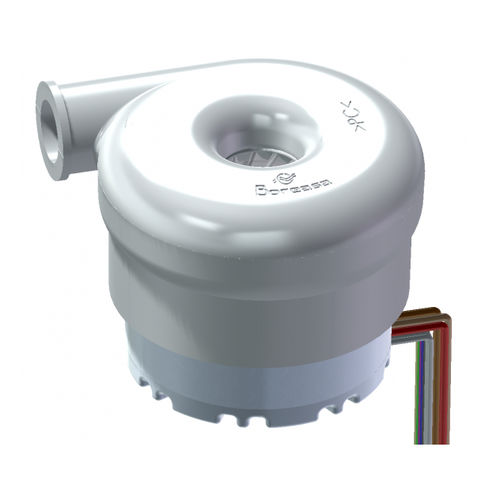

Small blower C60S1
airgasradial

small blower
small blower
small blower
small blower
small blower
small blower
small blower
Add to favorites
Compare this product


Characteristics

Type
air, gas
Technology
radial
Number of stages
dual-stage
Applications
for vacuum, conveying, cooling, drying, discharge, for ventilation, air conditioning, for hot welding torch, cleaner, for food applications, for parts, suction, centrifuge, engine, for vehicles, for boiler, for machines, for gas, for automobiles, for electrical cabinets, for medical devices, for packaging, for fuel cells
Voltage / frequency
24 Vdc, 12 Vdc
Other characteristics
positive pressure, oil-free, three-phase, variable-speed, on magnetic bearing, high-pressure, compact, aluminum, pneumatic, direct-drive, high-speed, brushless DC, small, flow control, vortex
Flow

Min.: 350 l/min
(92.46 us gal/min)

Max.: 407 l/min
(107.52 us gal/min)

Operating pressure

Min.: 4,200 Pa
(0.609 psi)

Max.: 5,019 Pa
(0.728 psi)

Nominal power

Min.: 24 W
(0.033 hp)

Max.: 33.1 W
(0.045 hp)

Weight

225 g
(7.94 oz)

Length

61.4 mm
(2.42 in)

Depth

61.4 mm
(2.4 in)

Height

50.8 mm
(2 in)

Description

Product Parameter: IN freeblowing: 1’250/1’600mA n freeblowing: 31’200/34’500rpm V freeblowing: 355/407 l/min P static: 4’200/5’019Pa PN work. point: 24.0/33.1W VCC Nominal Voltage:24V Features: * Dimensions: 61.4 x 61.4 x 50.8 mm (2.42 x 2.42 x 2 in) * Housing and Impeller materials: Medical grade thermoplastics * Lead Wire: 250mm (3 x AWG22, 6 x AWG28) * Weight: 225 gr. (7.95oz) * Operational Temperature: -20 to 50 ºC / -4 to 122 ºF * Three Phase Brushless Motor w/ Hall Sensor * Connectors: TE CONNECTIVITY (TE), MICRO-MATCH MOW.06P 215083-6 TE CONNECTIVITY (TE), CST-100 II 1375820-3  Standard Motor Internal Temperature Signal * Available in 12 V on demand Advantage: * Miniature: 54 ~ 95 mm in diameter * High-performance: max pressure up to 14 kPa * High efficiency: power conversion efficiency up to 55% * Long lifespan: over 30,000 hrs in Bi-Level mode * Rapid response: <120 ms between idle and max speed * Low vibration: balanced up to G0.4 * Low noise: <26 dB in CPAP machines * Drivers: square wave, FOC, or integrated in motors Application Field: 1.Medical Equipment Medical Ventilator Home Respirator Nmr Machine In Vitro Diagnostic Devices 2.Industrial Application Of Air Treatment Aircraft Smoke Sampling Onboard Thermal Management Government Facility Air Sampling Positive Pressure Protective Clothing 3.Air Transport Applications Fuel Cells Fresh Air System
