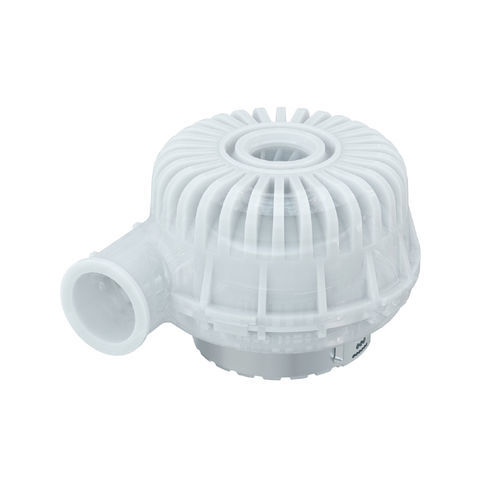

Miniature centrifugal blower C68SS1

air24VDC12VDC

An ultra-silent blower, designed for CPAP and home care market. - Dimensions: 68 x 78 x 51 mm - Drop-in compatible with some existing competitive blowers but much more silent. - This blower has a noise emission level of < 42 dB(A) (Measured at distance of 1 meter from inlet, with open inlet, outlet connected to breathing tube and 4 mm orifice in sound chamber at 10 cmH₂O). - At nominal voltage (24 V), the maximum pressure at zero flow is around 5,600 Pa, and the maximum flow at free flow is around 400 lpm. - Blowers can be run at higher voltages for short periods to reach a higher performance, such as 7,300 Pa at zero flow, or 450 lpm at free flow. - Available in 12 VDC on demand. - This blower is only available in sensor-less version. - This blower uses a brushless motor and needs a driver to operate. For more information, to receive a spec sheet, to request a quote or to place an order for this blower, please contact your local sales office (see "www.boreasa.com/Contact-us.html") and describe your application. - Dimensions: 68 x 78 x 51 mm - PQ at 24 V
