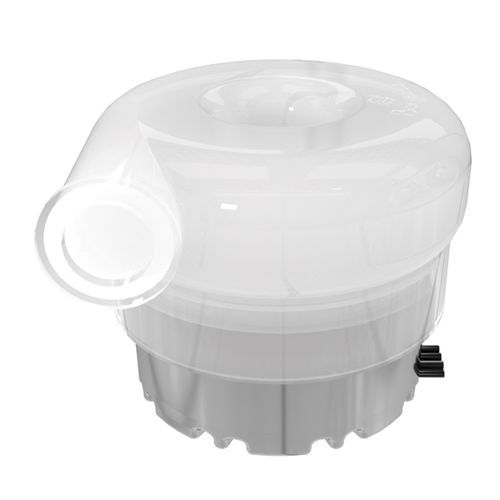

Miniature centrifugal blower C60S1-24PR-05

airgasdual-stage

Product Parameter： * IN freeblowing: 1’600/2’150mA * n freeblowing: 35’200/38’500rpm * V freeblowing: 400/450 l/min * P static: 4’450/5517Pa * PN work. point: 30/38.4W * VCC Nominal Voltage:24V Features： Dimensions: 61.4 x 61.4 x 50.8 mm (2.42 x 2.42 x 2 in) Housing and Impeller materials: Medical grade thermoplastics * Lead Wire: 250mm (3 x AWG22, 6 x AWG28) * Weight: 225 gr. (7.95oz) * Operational Temperature: -20 to 50 ºC / -4 to 122 ºF * Three Phase Brushless Motor w/ Hall Sensor * Connectors: TE CONNECTIVITY (TE), MICRO-MATCH MOW.06P 215083-6 TE CONNECTIVITY (TE), CST-100 II 1375820-3  Standard Motor Internal Temperature Signal * Available in 12 V on demand Advantage： 1. Small (diameter 54-105mm) but high performance, max pressure up to 14kpa. 2. High pressure, high speed(max up to 60000rpm). 3. High efficiency, power conversion efficiency up to 55%. 4. With internal drivers. 5. Made of biocompatible, medical grade materials 6. Long life, over 30,000 hours in bi-level mode. 7. Low noise, <29 db in home ventilators. Application Field: 1.Medical Equipment Medical Ventilator Home Respirator Nmr Machine In Vitro Diagnostic Devices 2.Industrial Application Of Air Treatment Aircraft Smoke Sampling Onboard Thermal Management Government Facility Air Sampling Positive Pressure Protective Clothing 3.Air Transport Applications Fuel Cells Fresh Air System
