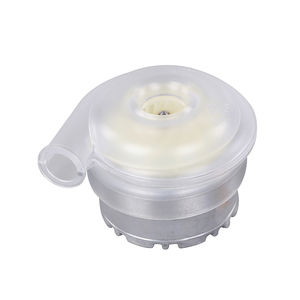

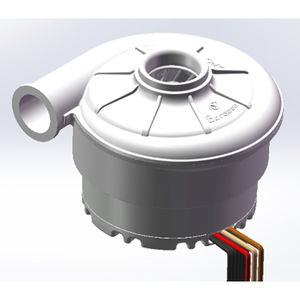

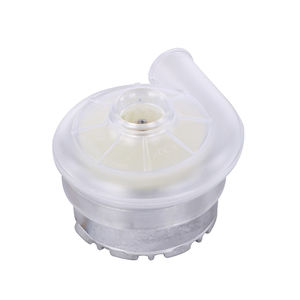

Miniature centrifugal blower C65MS1-04

air24VDC

A medium to high performance blower, with integrated driver. - Dimensions: 65.5 x 63 x 47 mm - Available in 2 performance Levels (L2 and L4). - At nominal voltage (24 V), the maximum pressure at zero flow is around 4,800 Pa (L2) ～ 7,800 Pa (L4), and the maximum flow at free flow is around 400 lpm (L2) ～ 470 lpm (L4). - Blowers can be run at higher voltages for short periods to reach a higher performance, such as 10,300 Pa at zero flow (L4), or 530 lpm at free flow (L4). - This blower has an integrated driver. For more information, to receive a spec sheet, to request a quote or to place an order for this blower, please contact your local sales office and describe your application. - Dimensions: 65.5 x 63 x 47 mm - PQ at 24 V
