- BORRELLY SPRING WASHERS

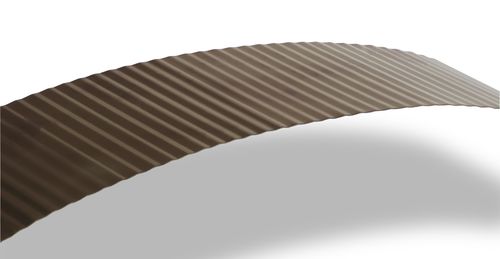

Linear wave spring PQD seriesstainless steelpreloaded
Add to favorites
Compare this product
Characteristics
- Type
- linear wave
- Material
- stainless steel
- Other characteristics
- preloaded
- Outer diameter
Max.: 100 mm
(3.9 in)Min.: 10 mm
(0.4 in)- Extended length
Max.: 306 mm
(12 in)Min.: 30.5 mm
(1.2 in)
Description
Borrelly ribbon springs are a continuous wave formed sheet manufactured from spring material. They are mounted between bearing and housing; their role is to permanently control the play between those both elements.
On assembly, the ribbon spring is preloaded, and bearing only moves in radial direction if global preloading force is exceeded.
Borrelly ribbon springs are available in both carbon and stainless steel
