Flat wire springs
Outer diameter: 4 mm - 60 mm
Force: 6 N - 450 N

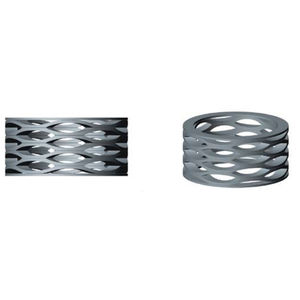

... axial area. Moreover, the Crest-to-Crest Wave vaults maintain similar pressure and load parameters of a traditional circular wire vault with the benefit of decreased and small-spaced functional, individual and stable lengths.
Outer diameter: 4 mm - 60 mm
Force: 9 N - 450 N
... similar in nature to the double-disc grinding springs for a flat surface, utilizing the same concept. The shim ends have also been used to affix springs to mating components such as a ...
Outer diameter: 16 mm - 100 mm
Nested Spirawave Wave Springs, manufactured by Smalley, are springs manufactured from flat wire with multiple turns, coiled in parallel. By coiling the waves in parallel, ...
Outer diameter: 22 mm
Force: 4 daN - 9 daN
... and rolling a flat wire corresponding to the width of the coil. Based on this technology, Borrelly Ondufil™ wave spring offers a solution for new requirements including compact housing, ...
Outer diameter: 0.5 in - 16 in
Force: 31 N - 338 N

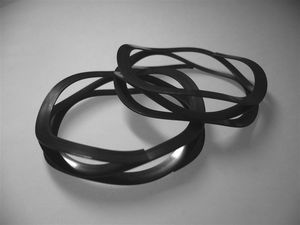

The SST flat-wire wave spring, manufactured by Rotor Clip Company, is a single turn wave spring used for short deflection applications with low to moderate forces. It ...
Outer diameter: 3.3 in - 7.8 in
Force: 240 N - 507 N
The wave spring is made out of pre-hardened flat wire. It is constructed in a single turn and narrow inch. It is suitable for short deflection applications where space is minimal. This ...
Outer diameter: 9 mm - 170 mm
Force: 26 N - 467 N
The MST Series, manufactured by Rotor Clip®, is a series of single-turn wave springs. These springs are generally applicable for short deflection procedures having low to medium forces. In addition, these ...
... thick stiff springs meeting the ISO 10243 standard. These extra stiff die springs are mechanical parts designed not to exhibit any permanent deformation, and will withstand shocks and sudden movements. ...
Extended length: 25 mm - 305 mm
Outer diameter: 10 mm - 50 mm
Force: 8 N - 7,747 N
Conical spring washers • Coil springs • System compression springs ISO 10243 • Taper pressure plugs • Spring vice units • Distance tubes • Raising washers • Strain washers ...
Outer diameter: 6.4 mm - 6.4 mm
With square-cross sections ranging between 0.35 mm and 6.40 mm, used in various applications including as transfer elements in clutches. Typical applications Automotive - Seating
Cylindrical, conical or biconical compression springs, made with round, square or rectangular wire, with constant or variable pitch compression, produced with Wafios® spring coilers in ...
Single or double torsion springs, with automatic bending of any type of shank.
Extended length: 1 mm - 12 mm
Medium (Blue) Springs and Medium Heavy (Red) Springs are manufactured by Raymond from a special rectangular shaped round cornered chrome-vanadium alloy.
Extended length: 4 mm - 50 mm
Outer diameter: 9.5 mm - 50.8 mm
Force: 29 N - 402 N
Multi-coil wave springs are made from flat spring material and are suitable for use in applications where a low mounting dimension is required. Both the total length and working height ...
Outer diameter: 9 mm - 51 mm
Force: 53 N - 400 N
Space Saving spring design: Multiwave springs, also known as 'crest to crest', replace conventional round wire springs when space is critical; they will occupy only 1/3 ...
Our heavy duty compression springs can be made custom to your requirements. Compression springs can be made to unique physical characteristics such as shaped wire, special material, and ...
