Wave spring L200 series

compressioncoiledflat wire

Multi wave springs wavy compression springs with shim ends stainless steel
Description:

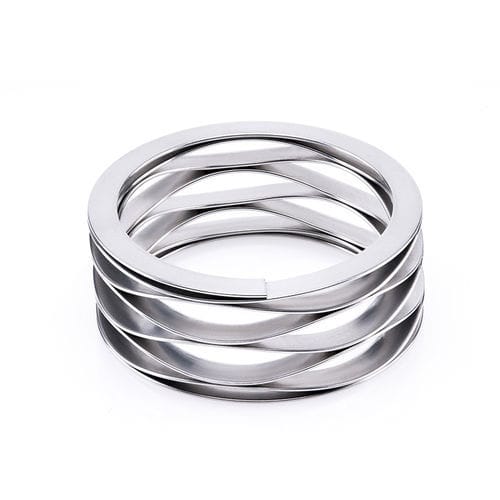

• A stainless steel multi turn wave spring with shim end (also known as coiled wave spring or scrowave spring) is made from pre-hardened flat wire using an on-edge coiling (edge-winding) process; waves are added to produce spring action.
• Multi wave springs are used for applications requiring tight load-deflection specifications where axial space is critical.
• Capabilities: spring thickness from 0.15mm to 0.7mm (0.006" to 0.0276").
• Spring outside diameter from 12mm to 60mm (0.472" to 2.36").

Stainless steel multi turn wave springs with shim end are tapered-section springs that withstand axial loads (static or alternating) and are characterized by delivering the largest load in the smallest space. Ordinary standard outer diameters range from 6.0mm to 600.00mm, and thickness ranges from 0.2mm to 40.00mm.

These springs act as elastic elements widely used in mechanical and electronic industries: they produce large elastic deformation when loaded, storing deformation energy that returns upon unloading. They are applicable where corrosion resistance, temperature resistance, and non-magnetic properties are required. Lisheng currently stocks thousands of regular sizes and supplies high-quality, cost-effective products.
What are stainless steel multi turn wave springs with shim end?
They are a type of wave spring that uses a shim to secure the end of the spring, allowing reliable seating and end retention in assemblies.
Benefits:

• Reduced manufacturing time and cost due to use of shim end (no additional end-forming process required).
• Increased efficiency and performance by ensuring the spring is tightly seated against components.
• Enhanced corrosion resistance due to stainless steel construction, suitable for harsh environments.
• Improved durability from multi-turn design, supporting long-term performance.

How to choose the right stainless steel multi turn wave spring with shim end:

• Consider the application requirements (load, environment, axial space).
• Specify correct dimensions (bore/shaft, free height, work height, thickness, outer diameter).
• Choose appropriate material for environmental conditions (e.g., corrosion resistance, temperature range).

Common applications:
Automotive (e.g., valvetrain systems), medical devices (syringes, infusion pumps), and various industrial applications where compact axial springs are needed.
Advantages:

• High rigidity with strong buffering and vibration absorption; can bear large loads with small deformation.
• Variable stiffness characteristics and wide nonlinear behaviour possibilities.
• Different combinations (involution, stacking, mixing thicknesses/number of sheets) allow tailoring of spring characteristics.

Features:
Short stroke and heavy load.
Small required space.
Easy to combine in assemblies.
Easy maintenance and replacement.
Economical and safe.
Long lasting.
Specification:
Part No. | Operates in Bore Diameter (mm) | Lear Shaft Diameter (mm) | Load (N) | Work Height (mm) | Free Height (mm) | Waves | Turns | Thickness (mm) | Radial Wall (mm) | Spring Rate (N/MM)
L200-H1 | 50.8 | 40.64 | 400.08 | 5 | 9.53 | 4.5 | 3 | 0.61 | 3.76 | 88.55
L200-L1 | 50.8 | 40.64 | 111.13 | 2.39 | 9.53 | 3.5 | 3 | 0.46 | 3.63 | 15.575
L200-M1 | 50.8 | 40.64 | 222.26 | 3.56 | 9.53 | 4.5 | 3 | 0.46 | 3.63 | 37.275
L200-H2 | 50.8 | 40.64 | 400.08 | 6.55 | 12.7 | 4.5 | 4 | 0.61 | 3.76 | 65.1
L200-L2 | 50.8 | 40.64 | 111.13 | 3.05 | 12.7 | 3.5 | 4 | 0.46 | 3.63 | 11.55
L200-M2 | 50.8 | 40.64 | 222.26 | 4.67 | 12.7 | 4.5 | 4 | 0.46 | 3.63 | 27.65
L200-H3 | 50.8 | 40.64 | 400.08 | 8.43 | 15.88 | 4.5 | 5 | 0.61 | 3.76 | 53.725
L200-L3 | 50.8 | 40.64 | 111.13 | 4.01 | 15.88 | 3.5 | 5 | 0.46 | 3.63 | 9.45
L200-M3 | 50.8 | 40.64 | 222.26 | 6.22 | 15.88 | 4.5 | 5 | 0.46 | 3.63 | 23.1
L200-H4 | 50.8 | 40.64 | 400.08 | 9.88 | 19.05 | 4.5 | 6 | 0.61 | 3.76 | 43.575
L200-L4 | 50.8 | 40.64 | 111.13 | 4.55 | 19.05 | 3.5 | 6 | 0.46 | 3.63 | 7.7
L200-M4 | 50.8 | 40.64 | 222.26 | 7.06 | 19.05 | 4.5 | 6 | 0.46 | 3.63 | 18.55
L200-H5 | 50.8 | 40.64 | 400.08 | 11.81 | 22.1 | 4.5 | 7 | 0.61 | 3.76 | 38.85
L200-L5 | 50.8 | 40.64 | 111.13 | 5.51 | 22.1 | 3.5 | 7 | 0.46 | 3.63 | 6.65
Caractéristiques / spécifications techniques:

• Material: Stainless steel (304 specified for this product page).
• Model family: Multi turn wave springs with shim end.
• Typical spring thickness capability: 0.15 mm to 0.7 mm (example capability); standard thickness range shown up to 40.00 mm for some types.
• Typical outer diameter range: from 6.0 mm up to 600.00 mm; sample product rows show outer diameters and associated dimensions.
• Sample part numbers and mechanical data provided (examples: L200-H1, L200-L1, L200-M1, etc., with loads, work/free heights, thickness, radial wall and spring rates as listed above).
• Suitable for high load in limited axial space, variable stiffness designs, stackable/combining possibilities, corrosion-resistant applications.
