in-line frequency inverter / integrated / modular / compact



  • Mounting:

    in-line, integrated

  • Other characteristics:

    compact, modular, regenerative

  • Power:

    3,000 W, 4,000 W, 7,500 W

  • Current:

    7 A, 10 A, 20 A

  • Output frequency:

    Max.: 800 Hz

    Min.: 0 Hz

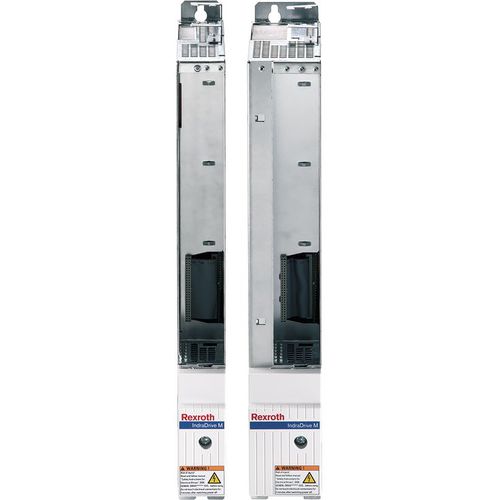

The IndraDrive M – HMD models, manufactured by Rexroth Bosch Group, can perform through a continuous current of 6 A to 20 A and boasts of a maximum current of 12 A to 36 A. Users can choose either from getting power from a power supply unit or use a converter energy exchange from a common DC bus multi-axis solution with power supplies and inverters. It is also composed of 3 Kw motor rated capacity and 17 W power consumption.

Its compact single-axis or double-axis inverters and power supplies with integrated mains connection components enable compact solutions for big axis groups. In line with the power recovery encountered in regenerative operation of the drives, another outstanding offering of these devices is the closed-loop DC bus.
