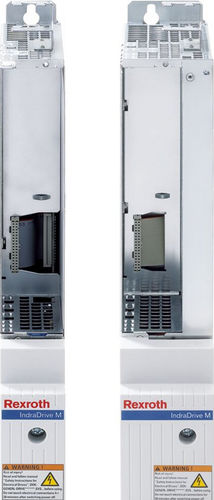

On-line DC/AC inverter HMS02 series
powervoltagedigital

On-line DC/AC inverter - HMS02 series - Bosch Rexroth - Electric Drives and Controls - power / voltage / digital

Add to favorites

Compare this product

Characteristics

Type

on-line

Electrical characteristics

power, voltage, digital, frequency, analog, variable, AC, DC

Power

Max.: 11,000 W

Min.: 5,500 W

Output voltage

Max.: 500 V

Min.: 0 V

Voltage

Max.: 750 V

Min.: 540 V

Primary current

Max.: 54 A

Min.: 28 A

Description

The single-axis inverters HMS02 are supplied with DC voltage and generate a regulated AC output voltage with variable amplitude and frequency for the operation of a motor. The integrated control unit slot that has various interfaces for connecting to the automation environment, for encoder systems, safety technology, and additional digital and analog signals, etc. Multi-axis applications are supplied from the DC bus of the HMV02 and for smaller axis packages, as well as with the corresponding power reserve of the HCS02, supply fromthe DC bus of an HCS converter is also possible.
